How The Rear Wheel Hub Works On Your Dirt Bike

How Your Rear Wheel Hub Works

How The Rear Wheel Hub Works On Your Dirt BikeUnderstanding how your rear hub works will save you time and effort when you perform your routine maintenance.

Unlike the front hub, the rear has three bearings instead of just 2, and a bearing retainer that screws into the brake side of the hub.

There are two bearings on the sprocket side and one bearing on the brake side.  The double bearing on the sprocket side is needed to handle the torque from the engine.

You Can Get All The Parts And Tools You Need At Amazon.com!

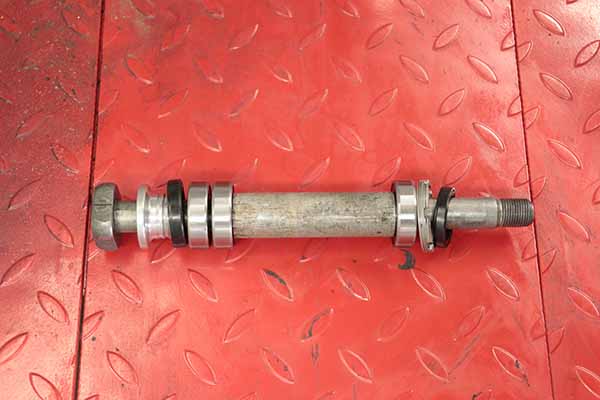

Wheel Hub Components From Sprocket To Brake Disc

(Click To Enlarge)

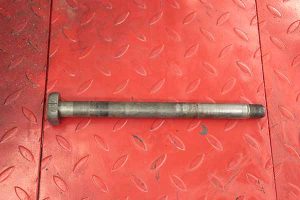

AxleAxle

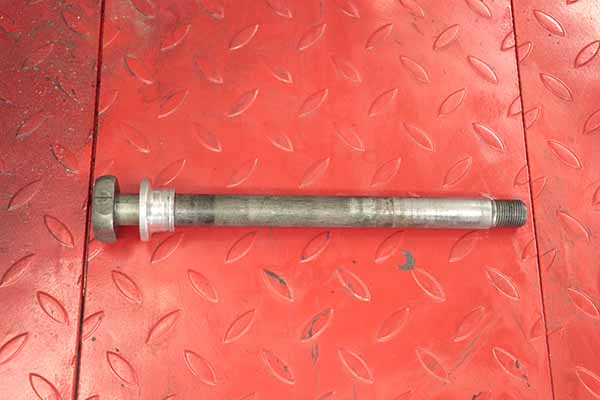

Left Axle Spacer      Axle Spacer

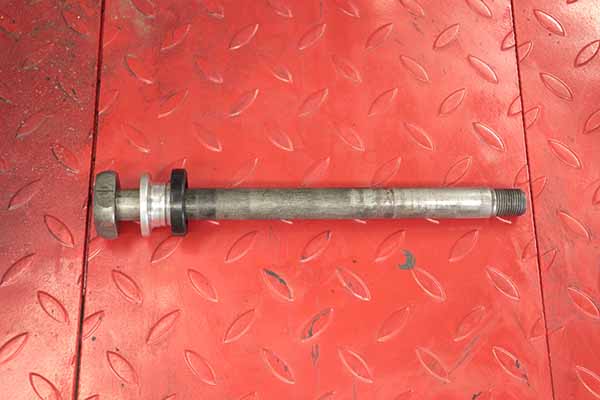

Left Bearing SealLeft Bearing Seal

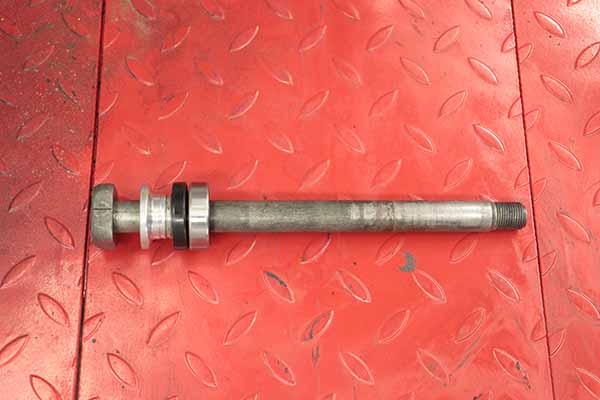

Left Outer BearingRight Outer Bearing

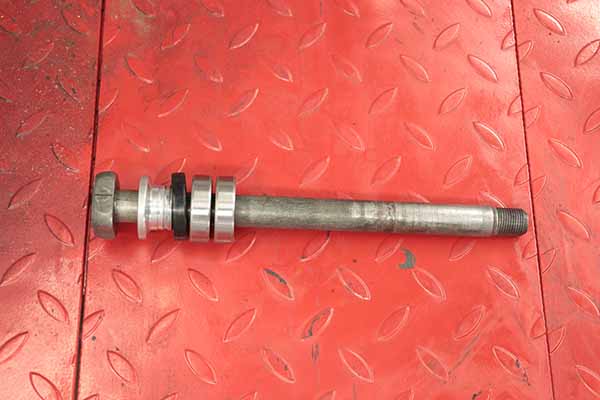

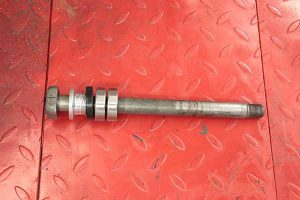

Left Inner BearingLeft Inner Bearing

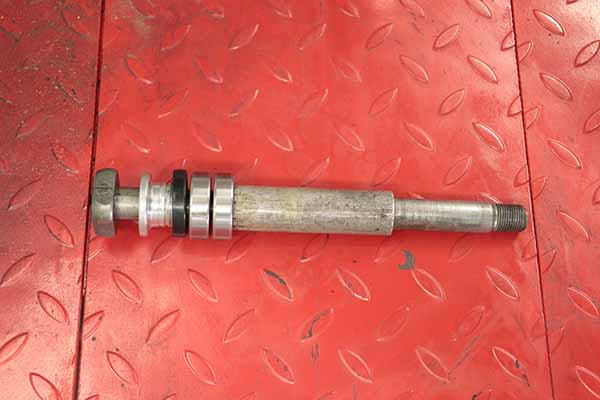

Distance CollarAxle Distance Collar

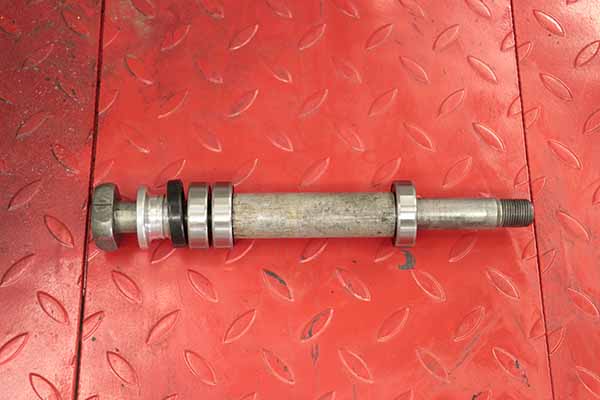

Right BearingRight Side Bearing

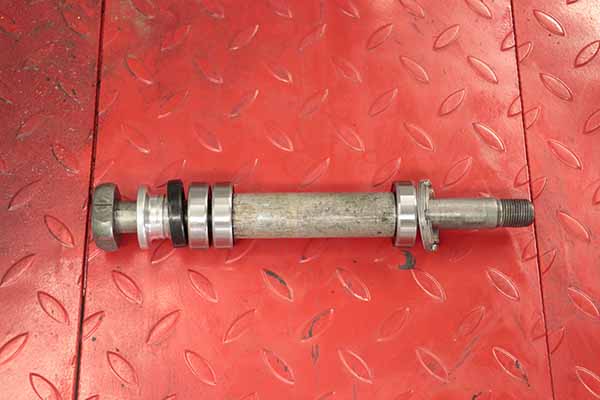

Bearing RetainerBearing Retainer

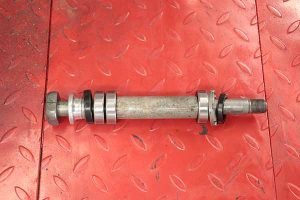

Right Bearing SealRight Bearing Seal

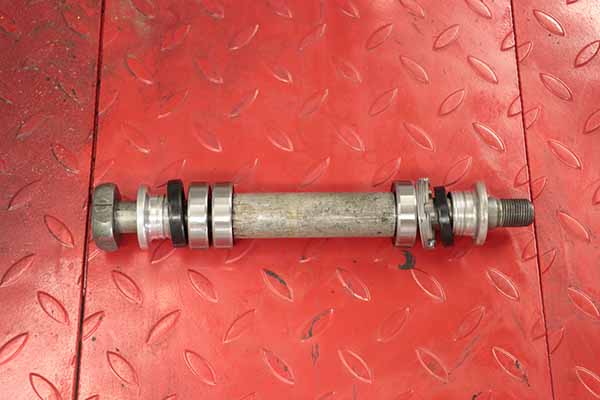

Right Axle SpacerRight Axle Spacer

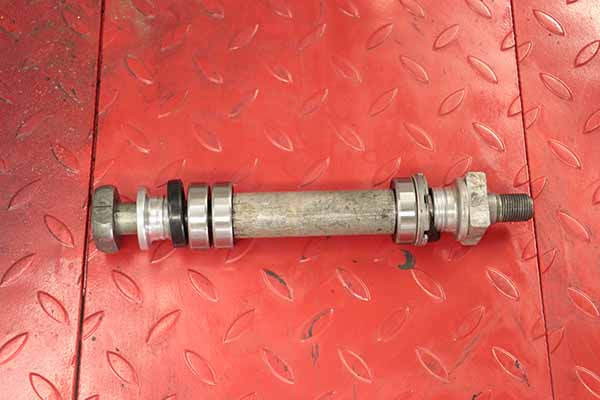

Axle blockAxle Block

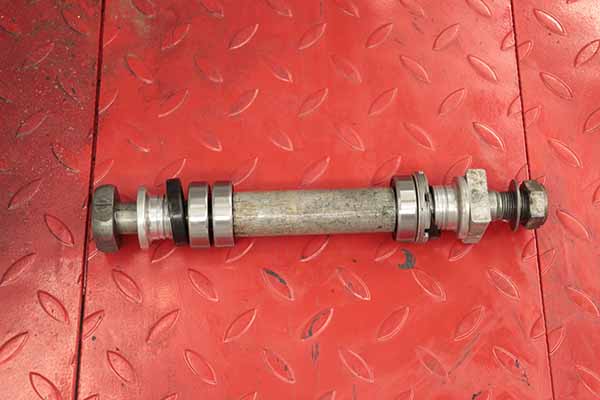

Washer And Axle NutAxle Nut



Related: How to remove and install the front wheel on your dirt bike.

Rear Axle Assembly

The square axle end and axle block allow the rear wheel hub to slide up and down the swing arm when adjusting the chain tension.

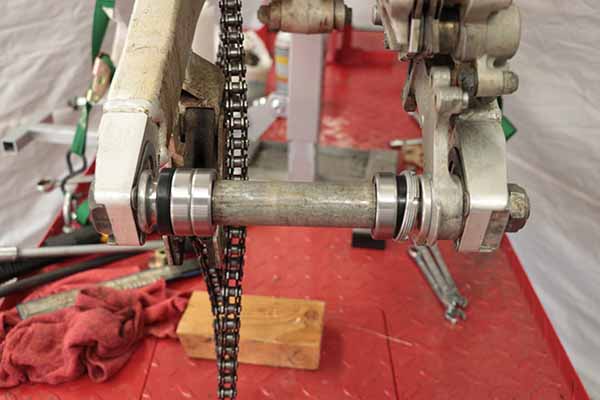

Hub Assembly In Swingarm

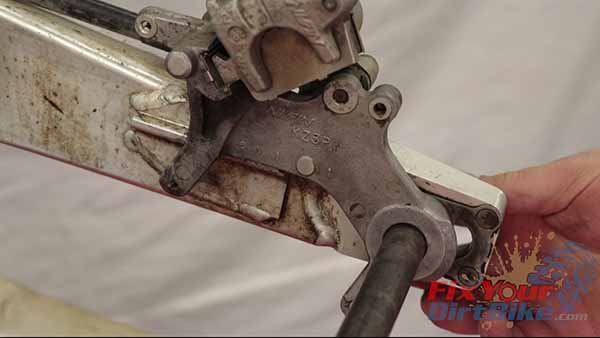

The rear brake assembly mounts to the axle and rides along a track in the swingarm, so it stays in place when the wheel moves during chain adjustment.

Rear Brake Carrier

Rear Wheel Bearing Stack

The bearings are the only part of the wheel hub that spins and are the only connection between the hub and the axle.

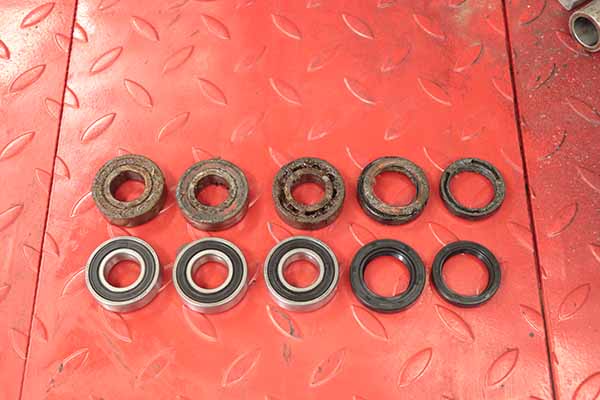

Old And New Bearings

(These particular bearings are from factory links. They are double shielded, pre-greased, and I highly recommend them. They go for $20 and you can buy yours HERE.)

Bearing Spacers

The spacers and bearings must all be an exact length, so the swing arm is not pulled together, or pushed apart. If any component of the wheel hub is damaged or out of spec, it needs to be replaced.

Chain Adjusters

While not part of the axle, the chain adjustment bolts are critical.

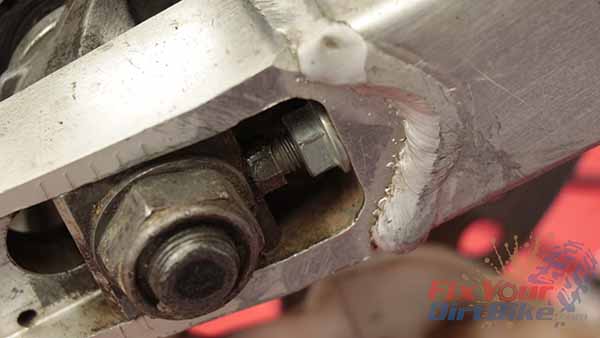

Chain Adjustment Bolts

These bolts keep the wheel aligned perpendicular to the drive chain.  If the rear wheel is out of alignment, it will cause premature wear on the drive chain, sprockets, swingarm, and bearings, all of which cost money to fix.

Axle Nut

The axle nut must be torqued to proper specification to allow the components to work together. Too tight and you will foul the bearings, Too loose and the spacers will spin on the axle.

When the wheel hub components are in good shape, greased up, and aligned properly, your rear wheel hub can go years without maintenance.

If you have any questions or anything to add, please leave them in the comments or on our FaceBook page!

And If you want to help take Fix Your Dirt Bike to the next level, check out my Patreon page!

Keep Reading – Rear Wheel Bearing Change
