Accessory Review: Outlaw Racing Easy Pull Clutch System

The Outlaw Racing Easy Pull clutch system (OREP) looks like an easy – and more importantly, cheap – way to lighten the clutch on your dirt bike.  Outlaw Racing claims a 30% decrease in clutch pull resistance with this system, so I put it to the test to see if these claims are accurate.

How Does The Easy Pull Clutch System Work?

Outlaw Racing Logo

This clutch system uses simple leverage to reduce pull weight.  Inside the case is a pivoting arm. The arm connects to your stock clutch cable, and the top of the arm connects to your clutch lever.

Click Here to Get Your OREP!

Installing the Outlaw Racing OREP

The OREP is, if I’m honest, a bit of a hassle to install.  This may just be my dirt bike, but getting everything to stay put while hooking up cables because very tedious, and this system has two small parts that can easily be lost.Easy pull clutch system disasembled

I actually lost the pivot pin during install when everything popped out of the case.  This was totally my fault though, I was playing with it to see it in action, and without the top of the case holding everything in place, the arm and pin went flying.

Even with everything I just mentioned, installation is simple enough:

Click pictures to enlarge.

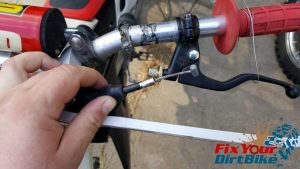

Step 1: Disconnect Stock Clutch Cable From LeverStep 1 - Disconnect Stock Clutch Cable From Lever

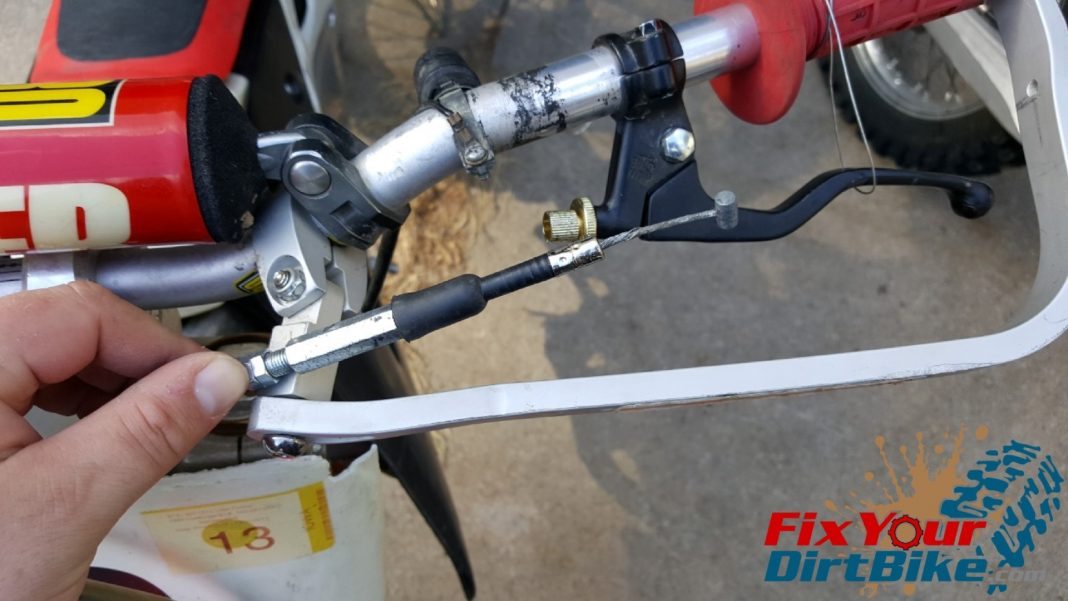

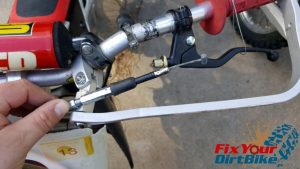

Step 2: Loosen Inline Adjustment PointsStep 2 - Loosen Inline Adjustment Points

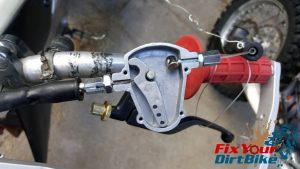

Step 3: Connect Clutch Cable to Middle of Pivot ArmStep 3 - Connect Clutch Cable to Middle of Pivot Arm

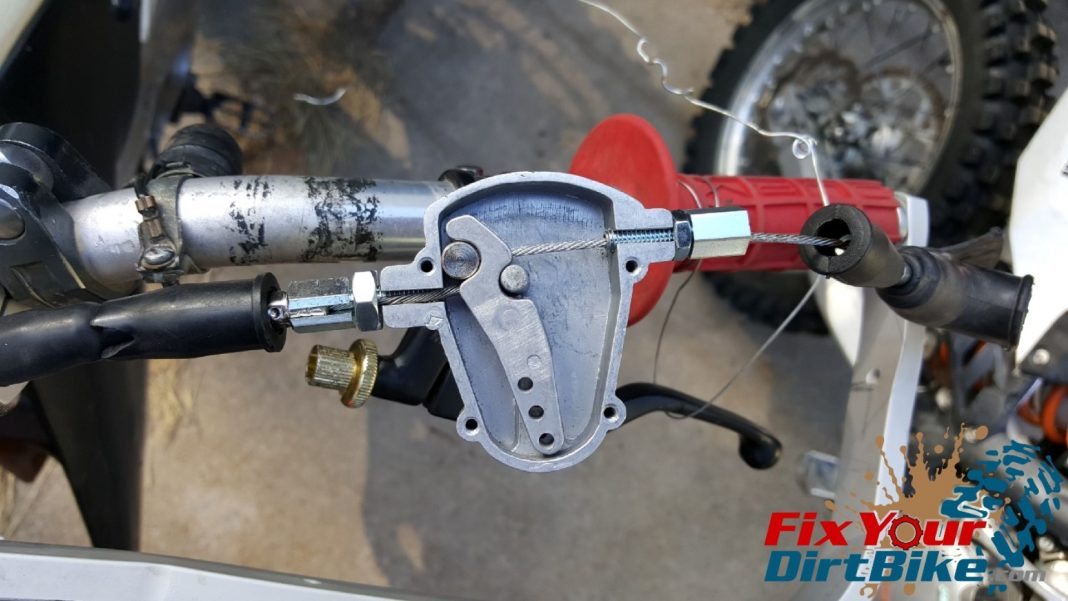

Step 4: Connect New Connection Cable to Top of Pivot ArmStep 4 - Connect New Connection Cable to Top of Pivot Arm

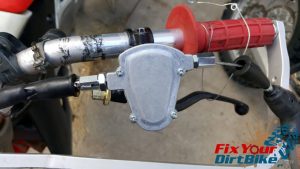

Step 5: Assemble BodyStep 5 - Assemble Body

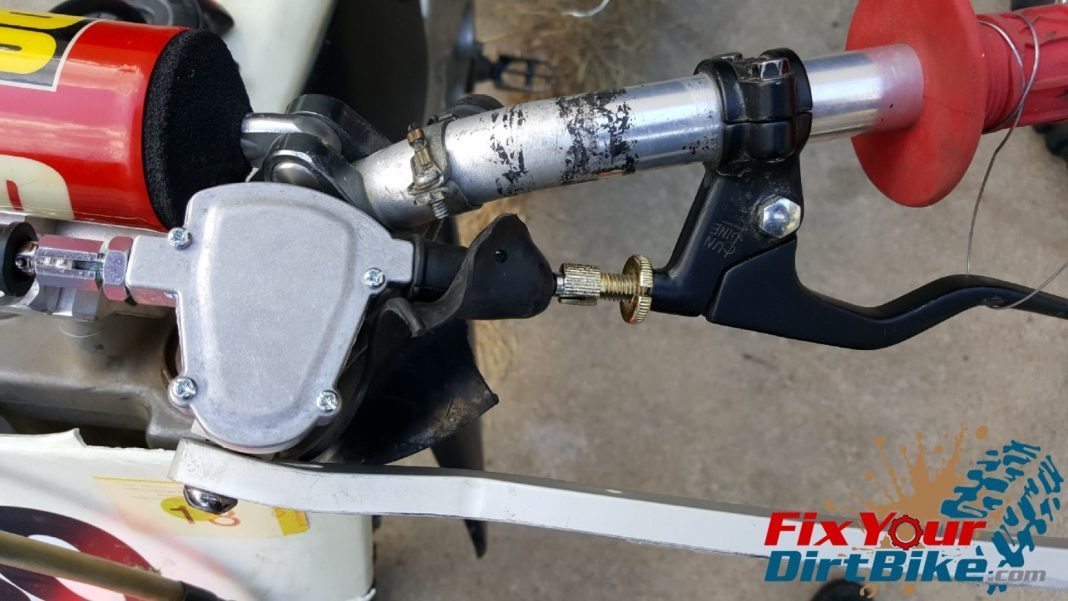

Step 6: Connect OREP to Clutch LeverStep 6 - Connect OREP to Clutch Lever

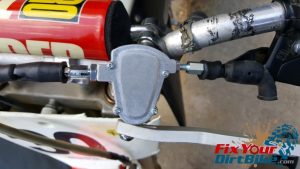

Step 7: Adjust Lever-to-OREP TensionStep 7 - Adjust Lever to OREP Tension

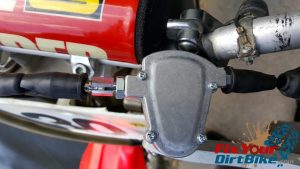

Step 8: Adjust Clutch Cable TensionStep 8 - Adjust Clutch Cable Tension

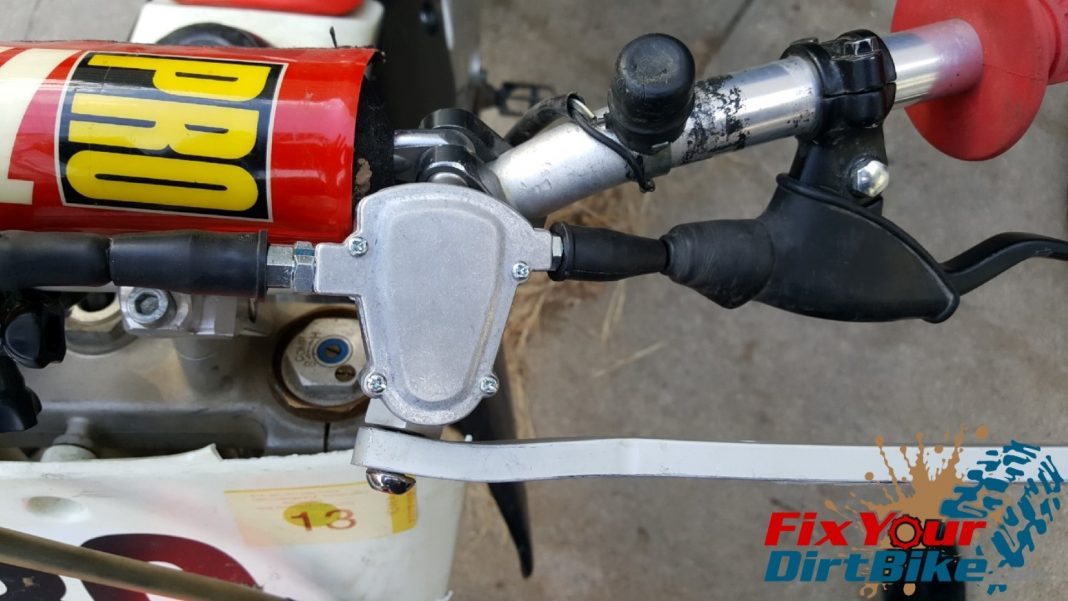

 Step 9: Go Ride!Step 9 - Go Ride!

Click Here to Get Your OREP!

So Does the Outlaw Easy Pull Actually Work?

YES! This clutch system works very well!

Not only does it make a noticeable difference in the clutch pull, but I took some measurements to prove it.  I attached a hook scale to the clutch lever and measured the pounds of pressure it takes to pull the clutch in before and after installing the Easy Pull clutch system.

Granted, this is not the most accurate way to measure this, but it’s good enough to get some numbers for the purposes of this test.  I started with a pull weight of 18.5 pounds, and with the easy pull clutch system, that was reduced to to 13.5 pounds.

The 5 pound difference doesn’t seem like much, but it does result in a 27% reduction in pull weight, which is very close to Outlaw Racing’s claim of %30.

Now, in relation to the KTM’s hydraulic clutch that has a 10 pound pull, the Honda is still %35 harder to pull, but considering the Honda is my Backup/Loaner/Project bike, and still a cable clutch, I’d say that’s still pretty good.



My Personal Recommendation on the Outlaw Racing Easy Pull system

Let’s take a look at the pros and cons:

Pros:

  • Dramatic reduction in pull resistance
  • Inexpensive for what you get
  • Ride Longer with less fatigue
  • More cable adjustment points for fine tuning
Cons:

  • Build quality – It’s not waterproof. This can be fixed with silicon.
  • The action can be a little rough due to the cam rubbing the inside of the case. This was quickly fixed with some all purpose grease.
  • Can be a hassle to install – You will need to find room for extra clutch cable.  But all I had to do was move the clutch cable to the other side of the number plate mounting screw.

Considering the pros far outweigh the cons, I would highly recommend the Outlaw Racing Easy Pull clutch system to anyone looking for an inexpensive way to lighten their clutch.

Well would you look at that?  You can get your very own Outlaw Racing Easy Pull clutch system on eBay!

If you have any questions or anything to add, please leave them in the comments or on our FaceBook page!
