1994 – 2001 Yamaha YZ125 – Exhaust Valve Governor – Removal – Inspection – Installation

0
8

How to Remove, Service, and Install your 1994 through 2001 Yamaha YZ125 Exhaust Valve Governor.

The Tools You Will Need

The Parts You Will Need

Pre-Service Notes

  • I recommend opening the Service & Torque Specs in a new tab for easy reference.
  • If you need parts and tools, make sure to buy them here! → https://amzn.to/4h4lDKq
  • Pictures with captions are below after step.
  • If you need any help don’t hesitate to ask!

Exhaust Valve Governor Removal

Your exhaust valve governor sits at the bottom front of your right crankcase. I recommend cleaning one component group at a time to keep things organized.

The Three Component Groups Are:

  • Drive Linkage Assembly
  • Right Crankcase Cover
  • Governor Rotating Assembly

Drive Linkage Assembly

  • Start by removing the two screws holding the governor fork to the push rod assembly.
  • Remove the push rod assembly.
  • Clean and inspect the pushrod assembly for cracks or bends, and check that the pivot points move freely.
  • Place your connecting rod assembly in a zip-lock bag and spray it down with penetrating oil to deep clean the pivot points.

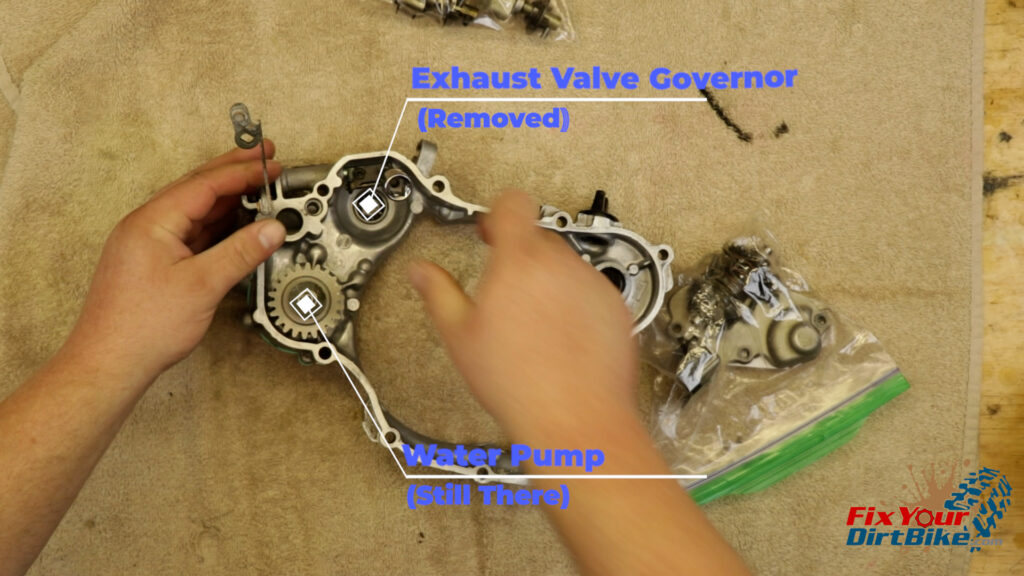

1 - Your exhaust valve governor sits at the bottom front of your right crankcase
1 – Your exhaust valve governor sits at the bottom front of your right crankcase

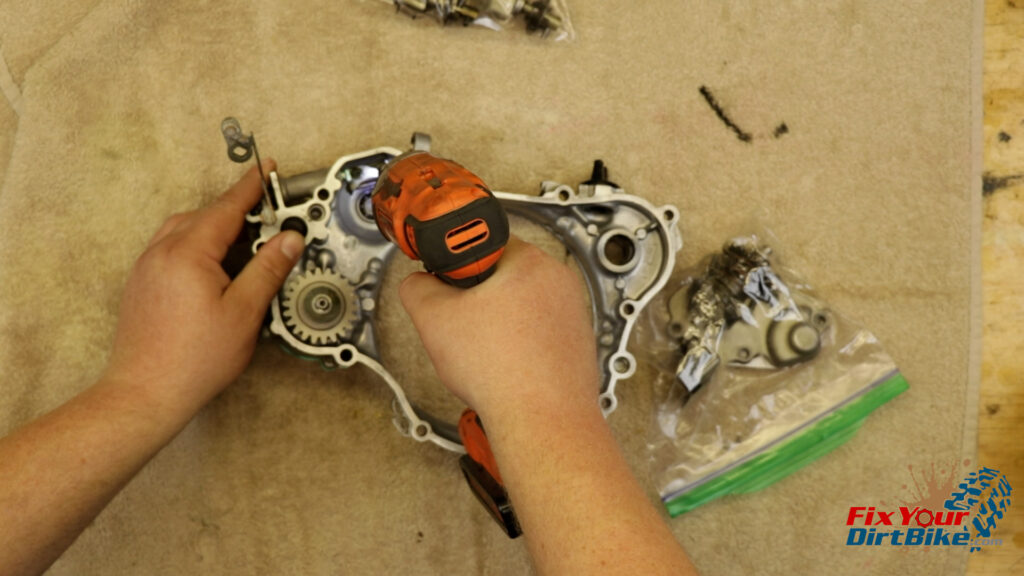

2 - Start by removing the two screws holding the governor fork to the push rod assembly
2 – Start by removing the two screws holding the governor fork to the push rod assembly
3 - Remove the push rod assembly
3 – Remove the push rod assembly

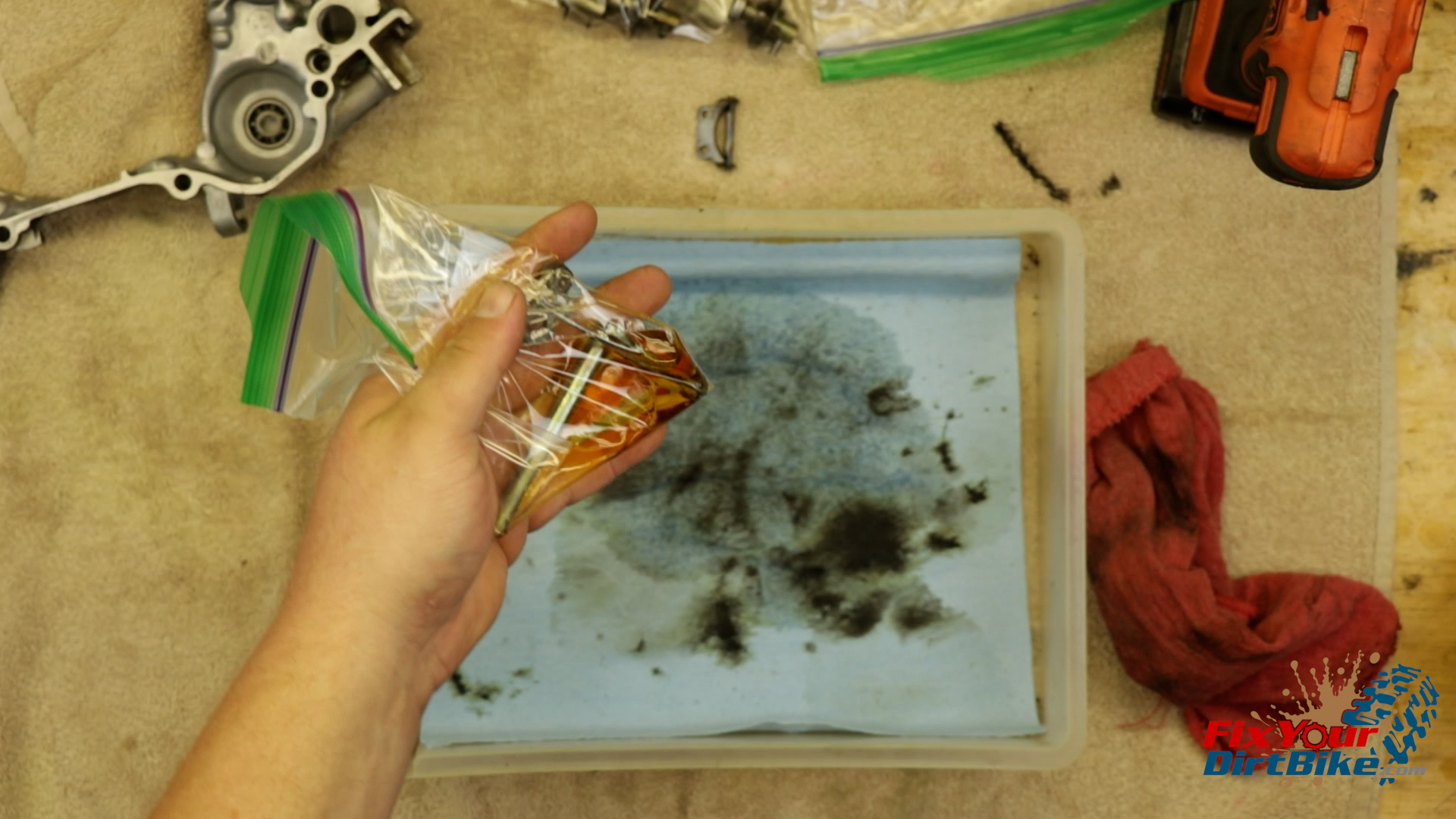

4 - Place your connecting rod assembly in a zip-lock bag and spray it down with penetrating oil to deep clean the pivot points
4 – Place your connecting rod assembly in a zip-lock bag and spray it down with penetrating oil to deep clean the pivot points

Right Crankcase Cover

  • Clean the pushrod bore, and check for any burs, cracks, or obvious damage.
  • Test the bearing by placing your governor in the bore and giving it a good spin.
  • The governor should spin freely without wobble.
  • If your bearing is damaged, it needs to be replaced.
  • If everything checks out, clean the cover and reinstall the push rod assembly.

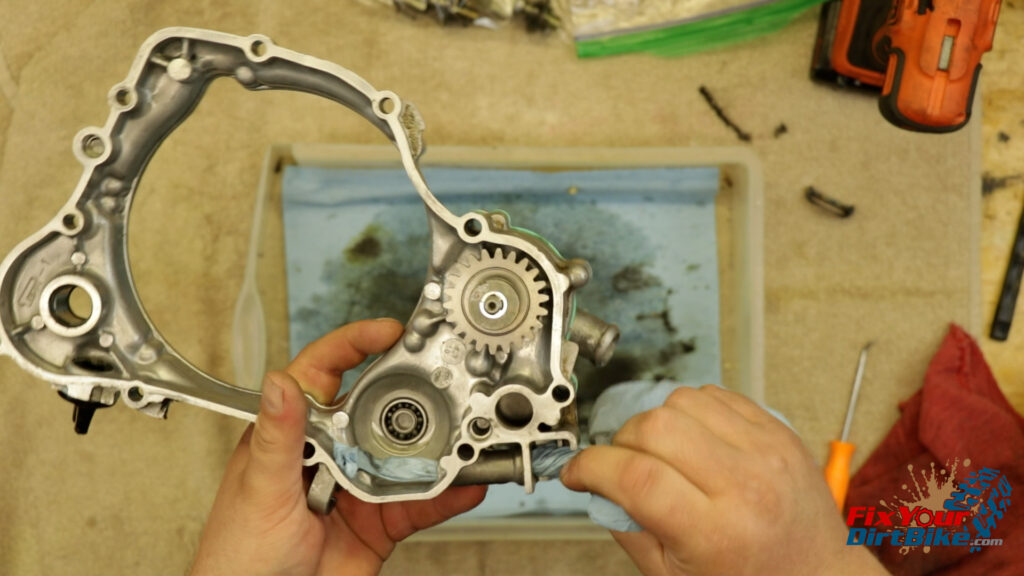

5 - Clean the pushrod bore, and check for any burs, cracks, or obvious damage
5 – Clean the pushrod bore, and check for any burs, cracks, or obvious damage

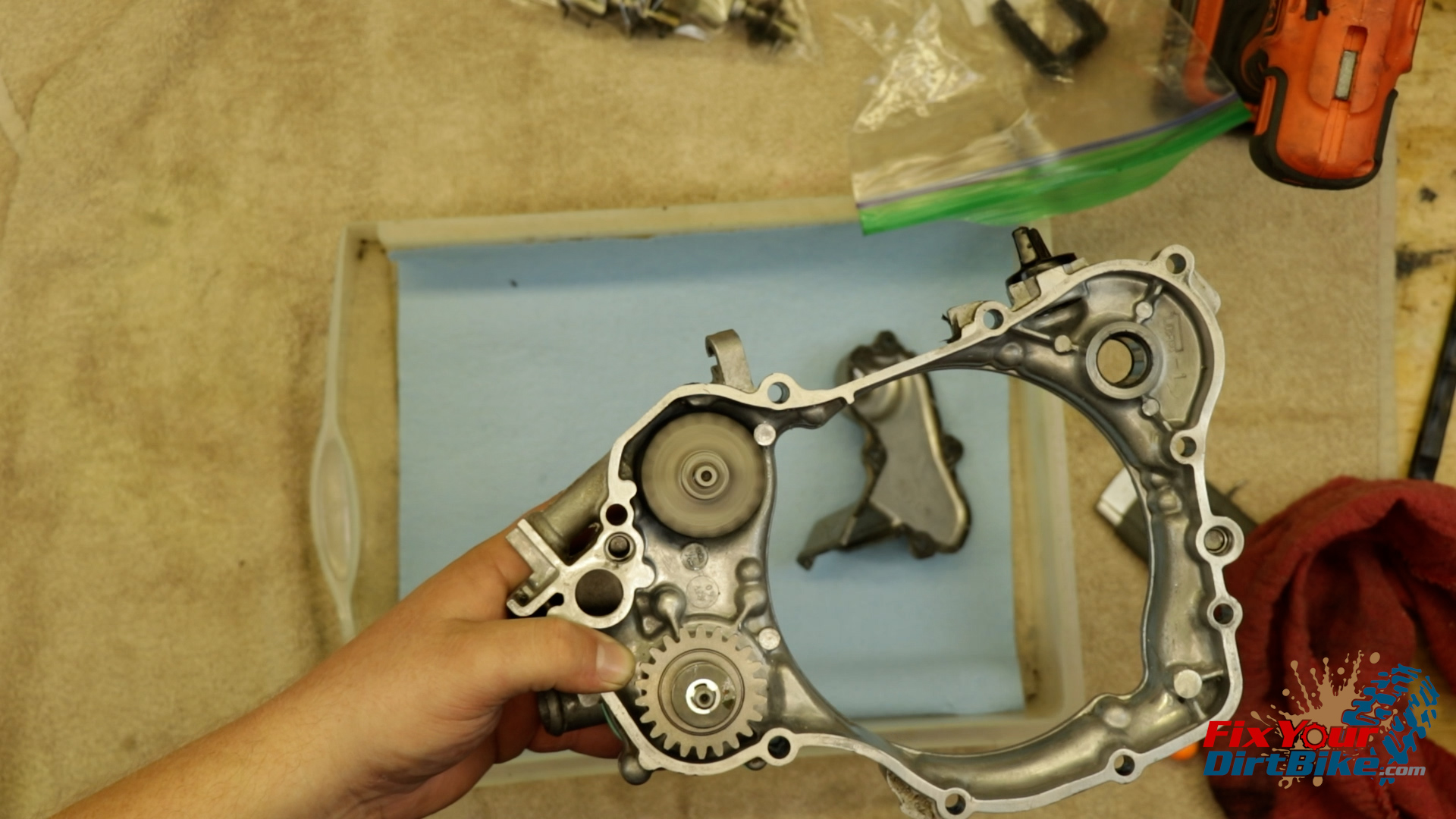

6 - Test the bearing by placing your governor in the bore and giving it a good spin.
6 – Test the bearing by placing your governor in the bore and giving it a good spin.

Drive Linkage Assembly – Installation

  • Install the governor fork with the bar facing the bearing.
  • Apply thread lock, and torque the fork screws to 44 inch pounds.
  • Install the governor, and test the operation.

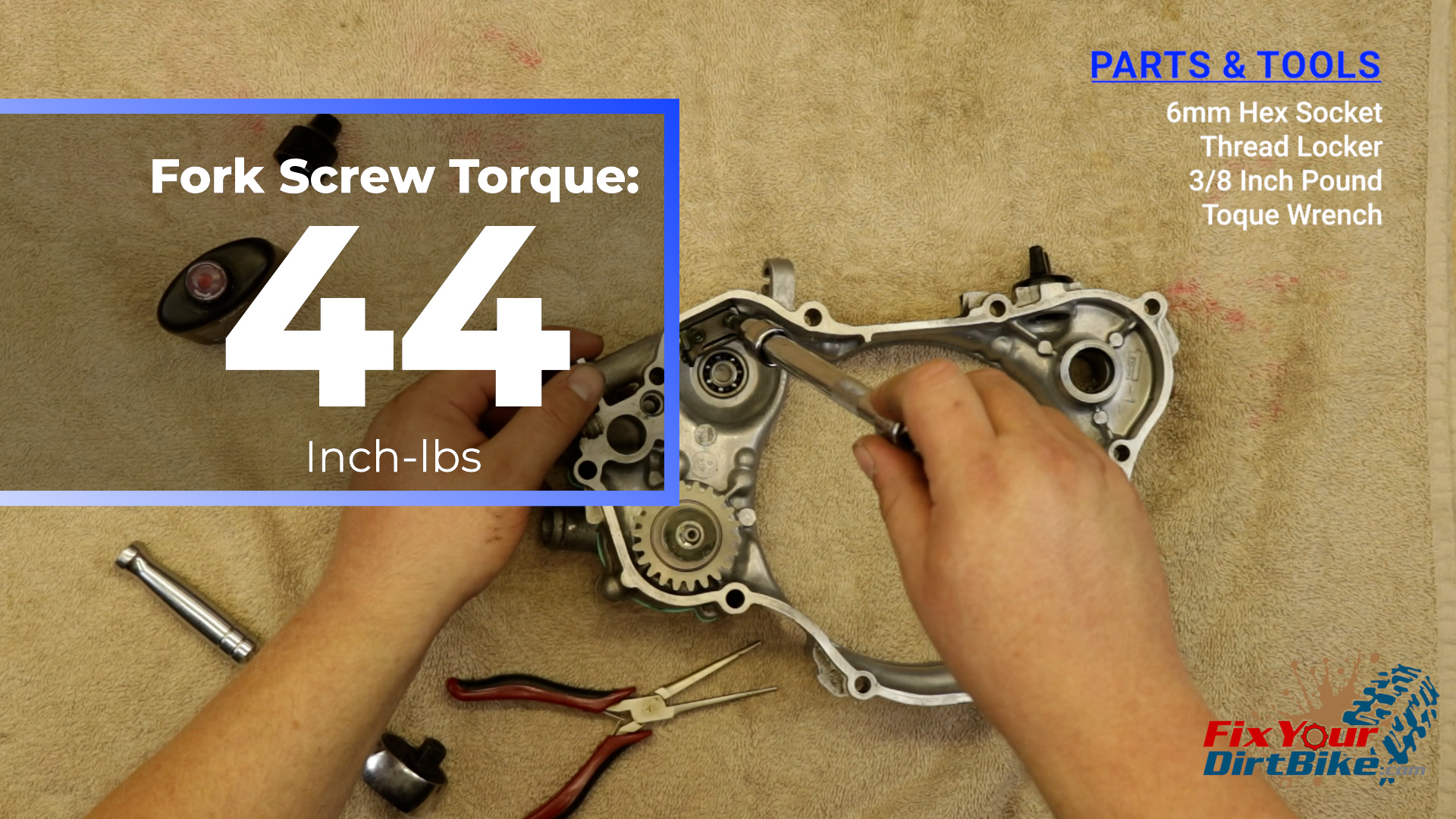

7 - Apply threadlock, and torque the fork screws to 44 inch pounds
7 – Apply threadlock, and torque the fork screws to 44 inch pounds
8 - Install the governor, and test the operation
8 – Install the governor, and test the operation

Governor Rotating Assembly

  • The exhaust valve governor is a stack of thrust bearings, washers, and a collar, all held together with a single pin at the end.
  • Disassemble the governor, and lay each piece out in order, then clean and inspect each piece while you reassemble.
  • Install the governor in the crankcase cover.
Governor Stack for 1994-1998 Models
  1. Gear
  2. Spring
  3. Spacer
  4. Plate
  5. Washer
  6. Thrust Bearing
  7. Washer
  8. Collar
  9. Washer
  10. Thrust Bearing
  11. Washer
  12. Retainer Weight
  13. Balls & Retainer
Governor Stack for 1999 -2001 Models
  1. Gear
  2. Spring
  3. Plate
  4. Thrust Bearing
  5. Washer
  6. Collar
  7. Washer
  8. Thrust Bearing
  9. Washer
  10. Retainer Weight
  11. Balls & Retainer

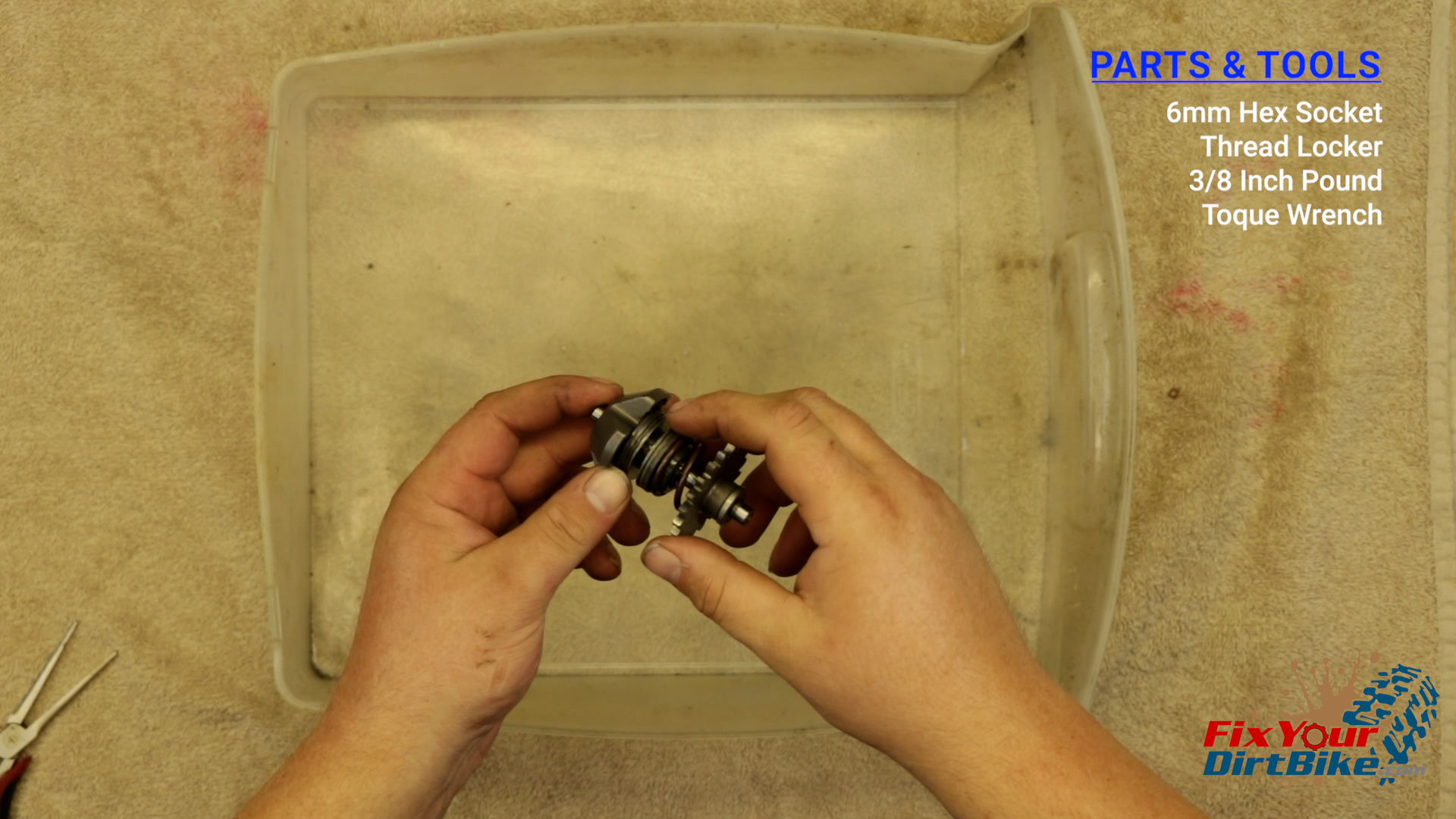

9 - The exhaust valve governor is a stack of thrust bearings, washers, and a collar, all held together with a single pin at the end
9 – The exhaust valve governor is a stack of thrust bearings, washers, and a collar, all held together with a single pin at the end

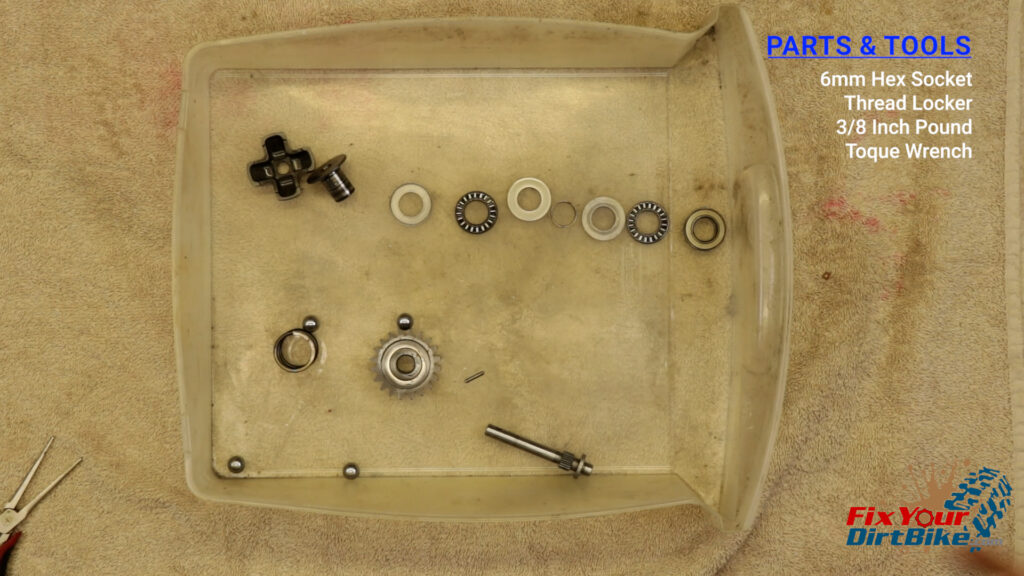

10 - Disassemble the governor, and lay each piece out in order, then clean and inspect each piece while you reassemble
10 – Disassemble the governor, and lay each piece out in order, then clean and inspect each piece while you reassemble
11 - Governor Stacks By Year
11 – Governor Stacks By Year

Governor Rotating Assembly – Installation

  • Install a new gasket, and install the crankcase cover.
  • Apply thread lock and install the drive shaft bolt.
  • Install a new gasket, and install the linkage cover.
12 - Install a new gasket, and install the crankcase cover
12 – Install a new gasket, and install the crankcase cover

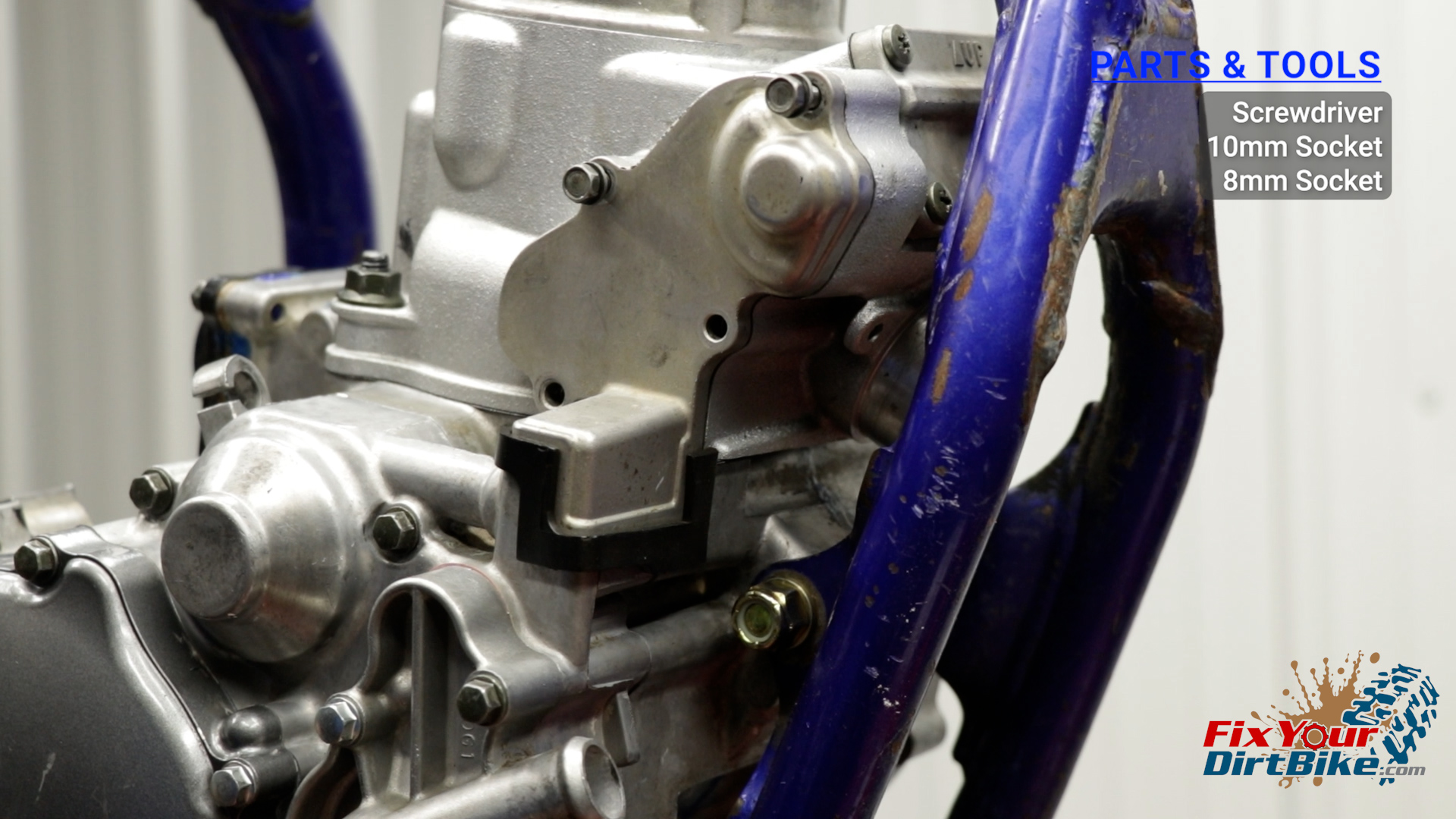

13 - Install a new gasket, and install the linkage cover
13 – Install a new gasket, and install the linkage cover



If you have any questions, please let me in the comments, or send me a DM!
