Trail Tech Keeps Draining My Battery! – How To Fix That
Trail Tech Keeps Draining My Battery - How To Fix That Featured Image

My Trail Tech Voyager Keeps Killing My Battery!

Trail Tech Keeps Draining My Battery - How To Fix That Featured ImageIt might be killing your battery, too, so here’s how I fixed mine for $7.

Tools:

  • Wire Strippers
  • Dielectric Grease
  • Heat Gun

Parts:

  • Switch
  • Heat Shrink Tubes
  • Zip Ties

You can get all the parts and tools you need through our partner links!

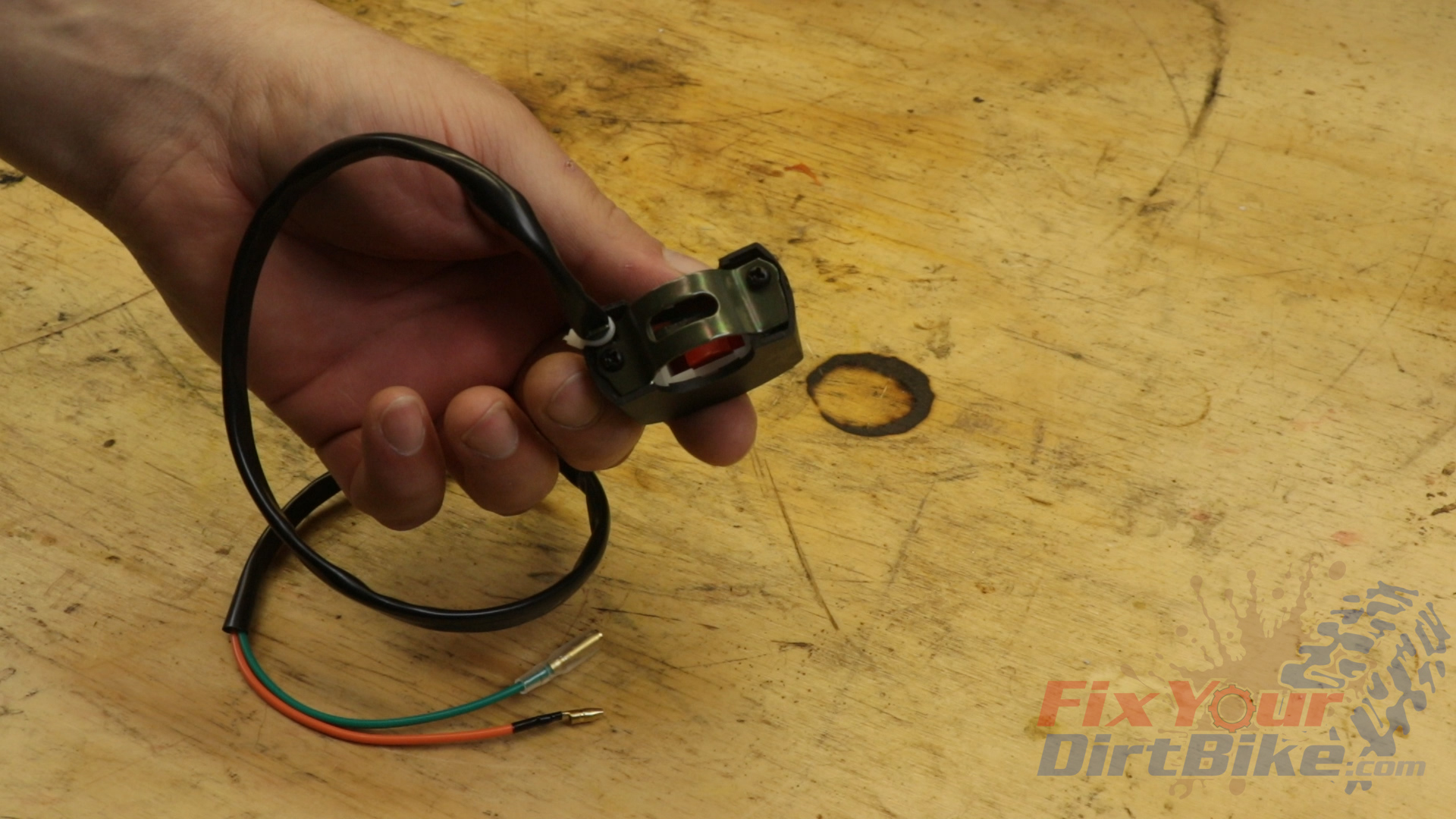

1 - Cheap Waterproof SwitchI used the cheapest waterproof handlebar switch I could find and some shrink tube.

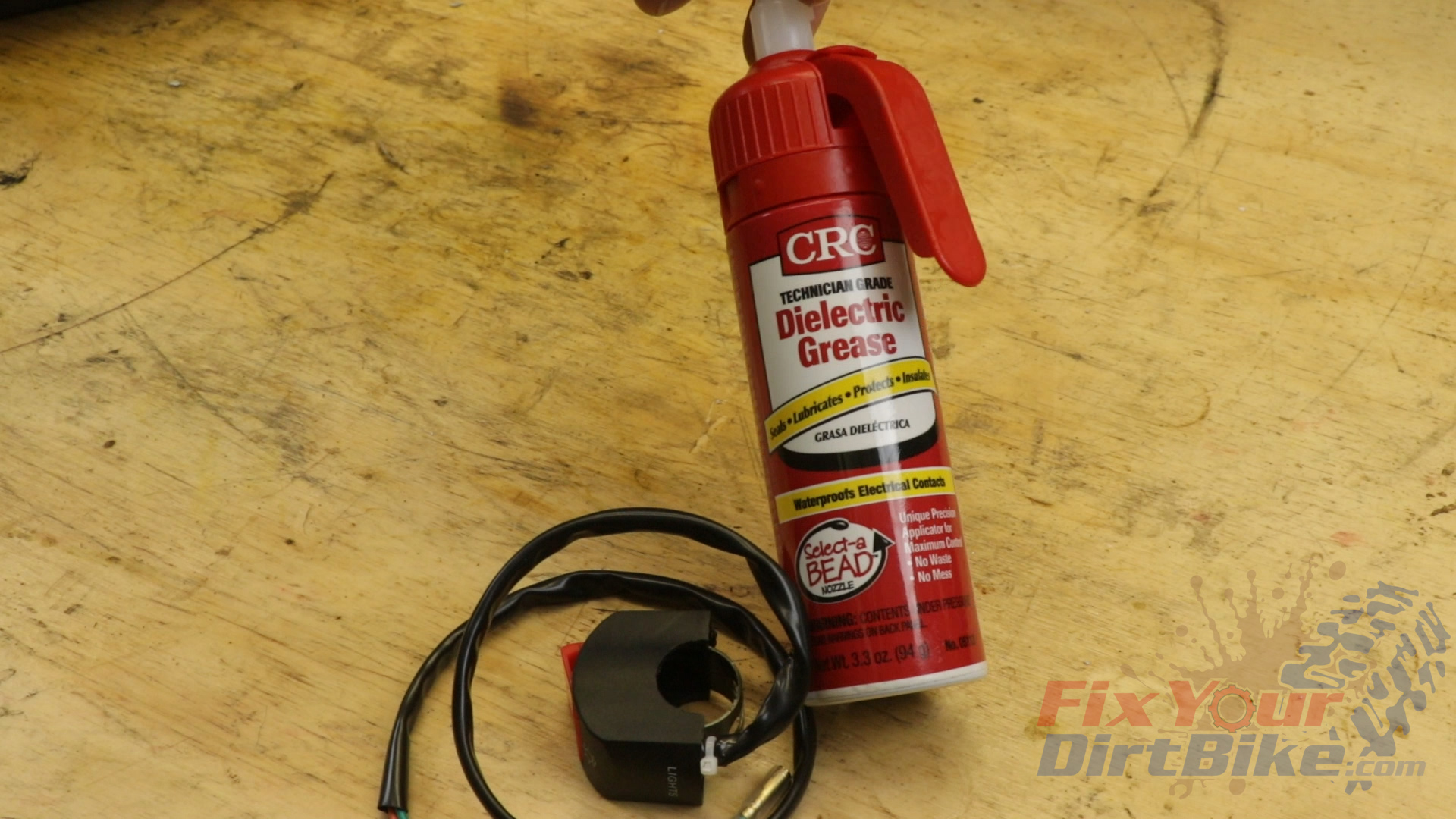

2 - Waterproof Does Not Mean Waterproof ApparentlyWaterproof was just a buzzword, so I goobered mine with dielectric grease.

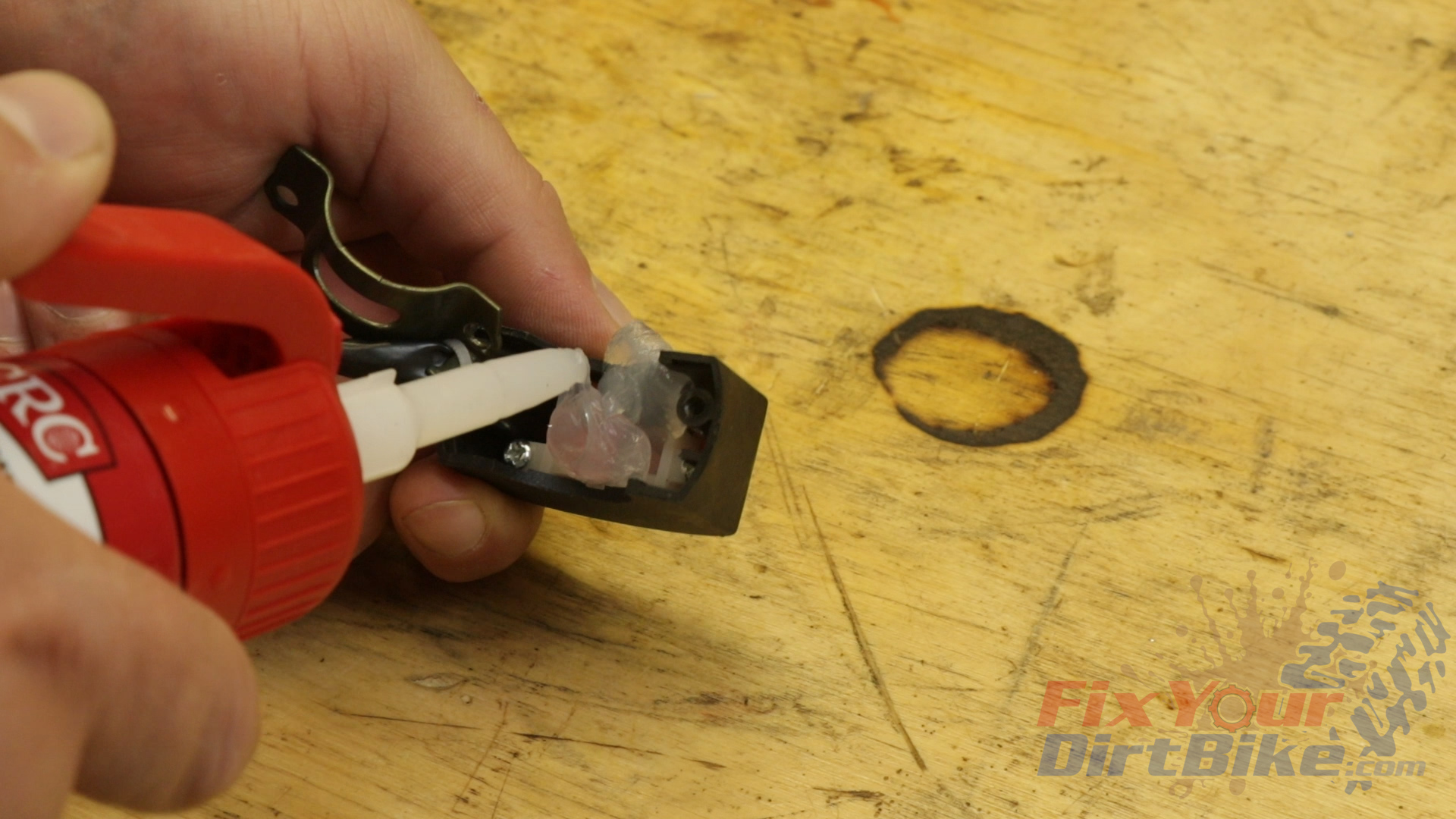

3 - Dielectric GooberThis is a switch for lights, so I won’t be needing the plug ends.

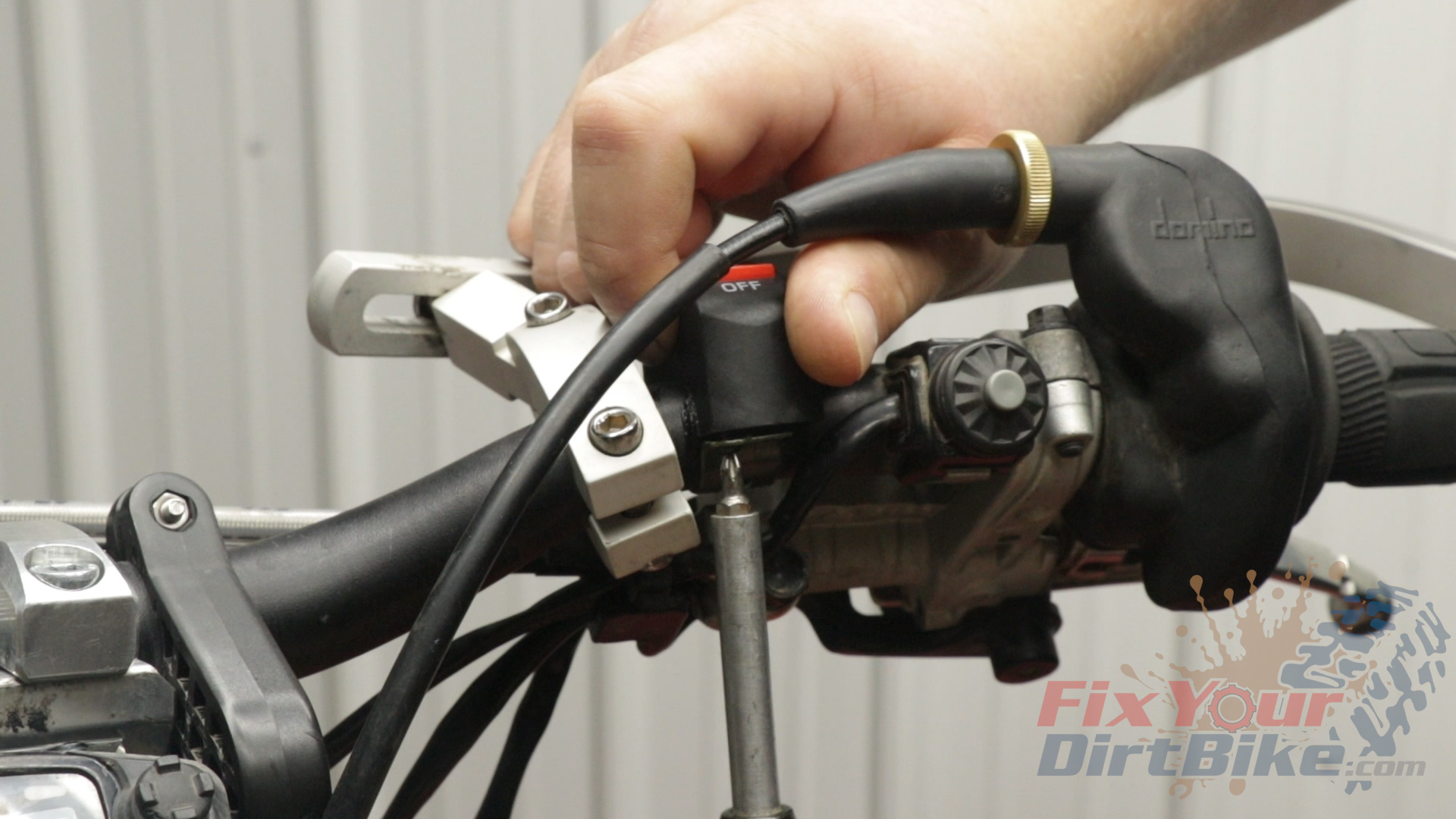

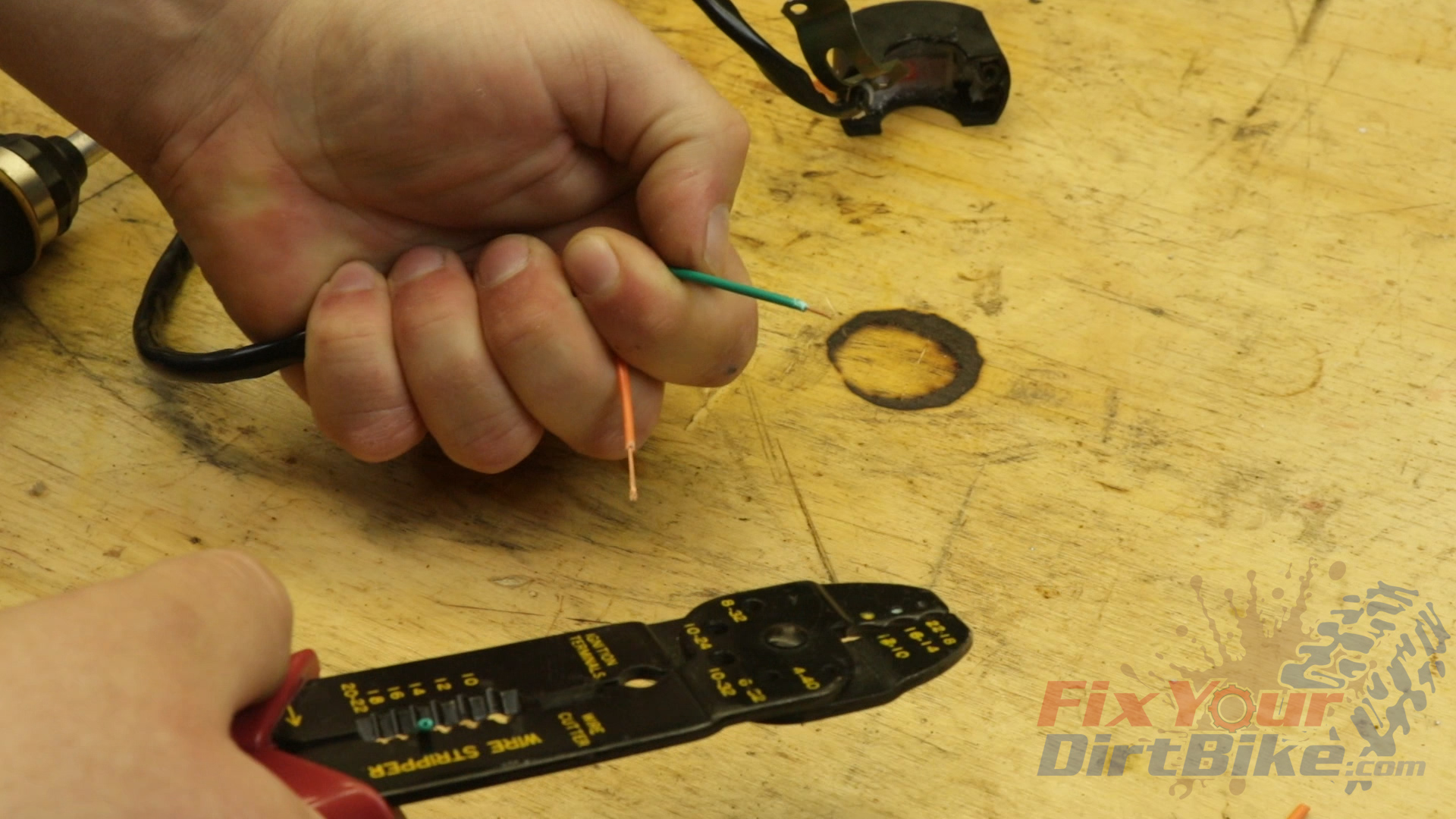

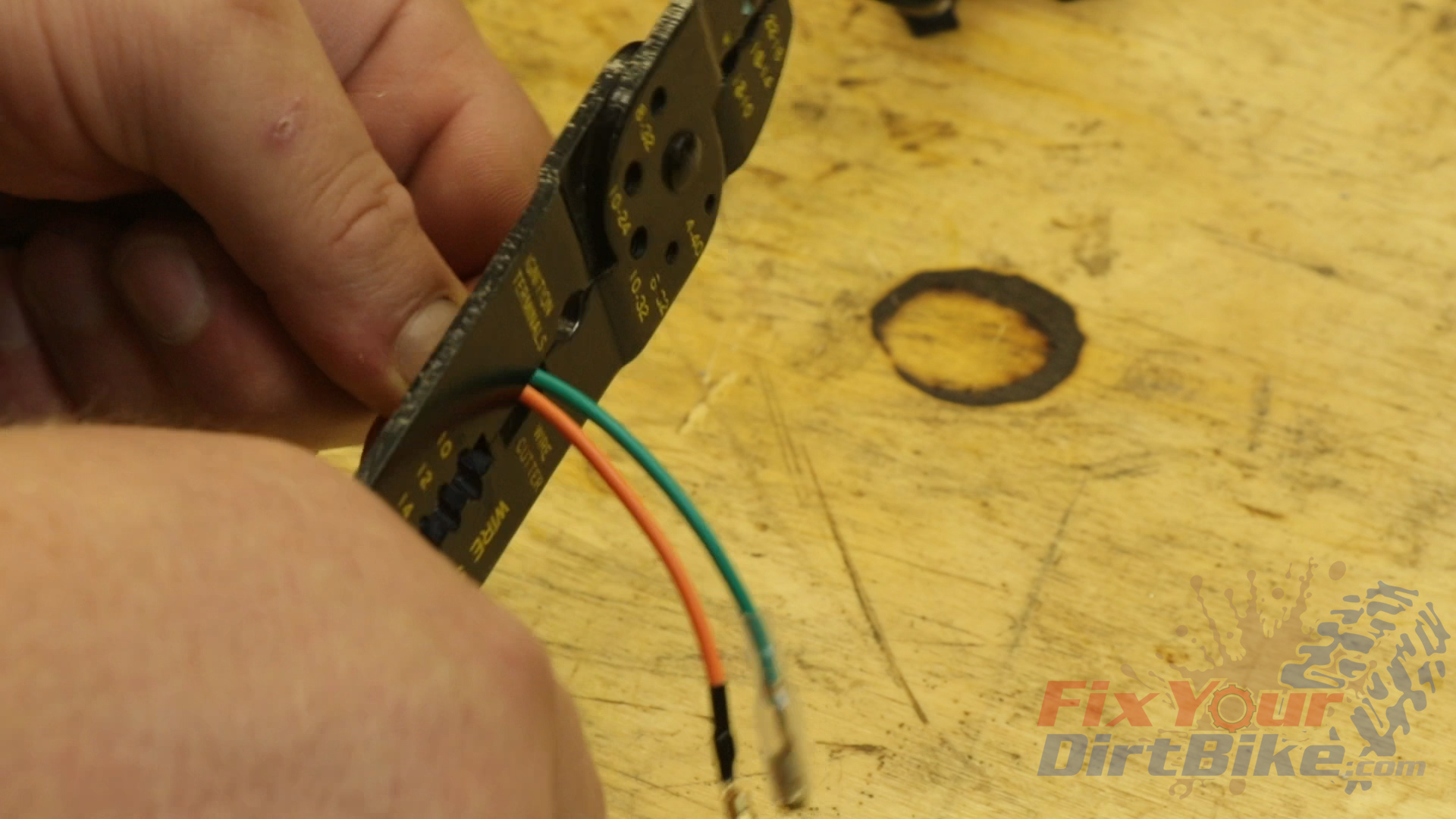

4 - Cut Off Connectors 5 - Strip Switch WiresI mounted mine next to the magic button and ran the leads as well as I was able.6 - Mount Switch This is an inline switch, so all it is doing is interrupting the flow of power.

Related: You should always take a trail pack with you when you ride. Here’s what I have in mine!

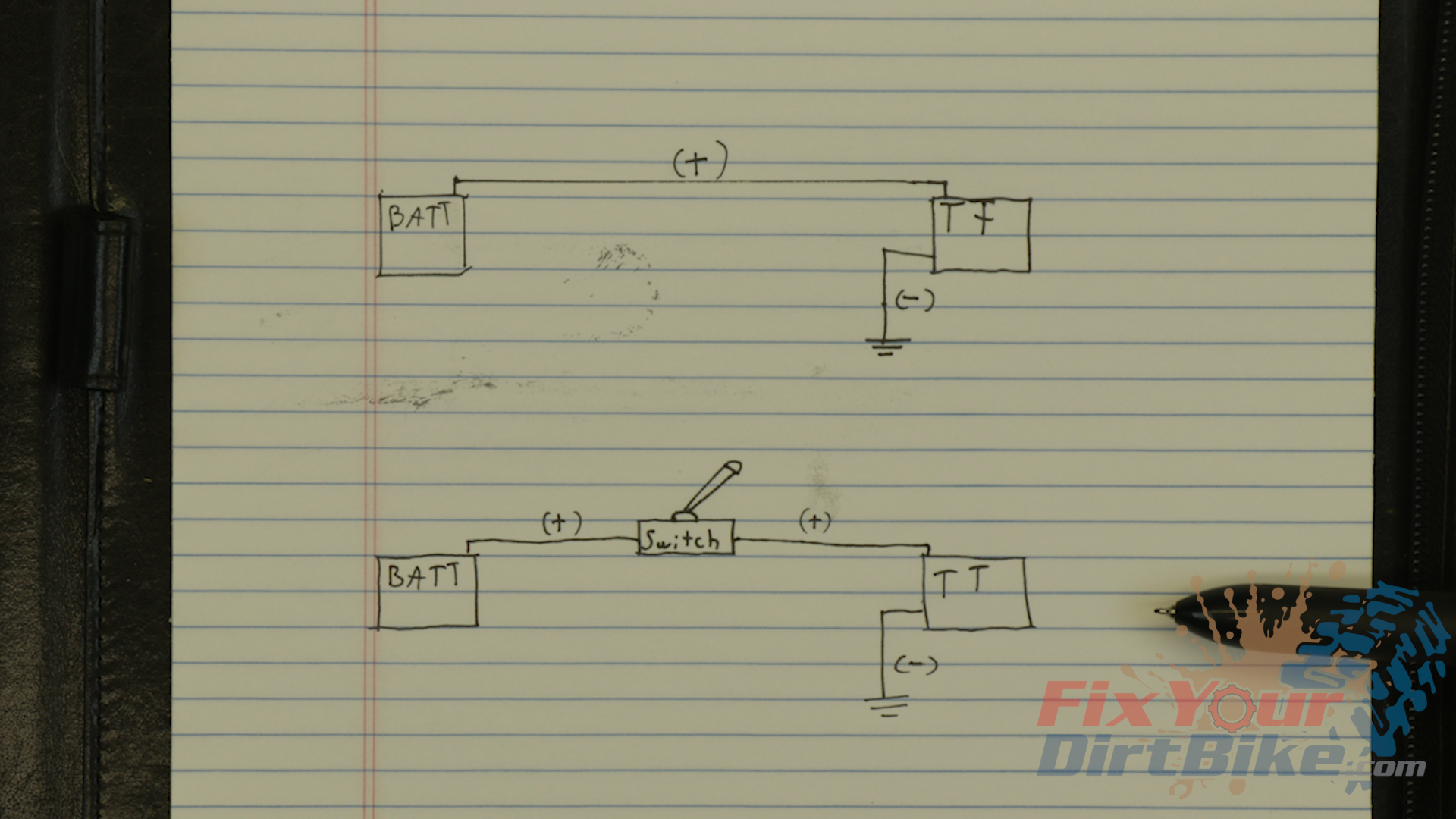

An inline switch is typically installed along the positive path because sending dc to something without grounding it can potentially hurt it.7 - How An Inline Switch Works I want to be able to unplug and remove my trail tech, so I want to use the stock connector.

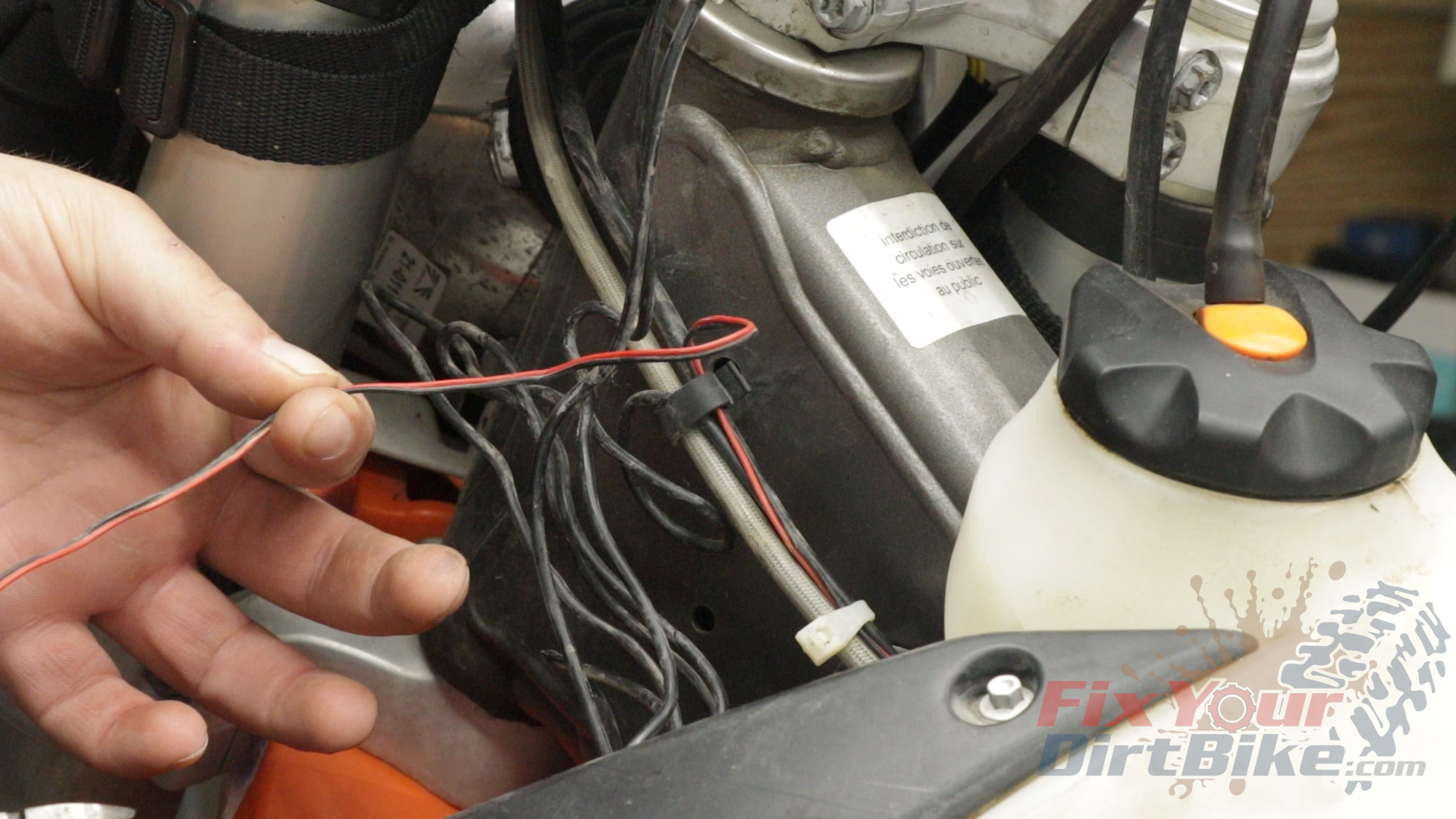

I cut the power wires about 5 inches in front of the connector.8 - Cut Power About 5 Inches From Plug For this switch, orange was positive, and green was negative.

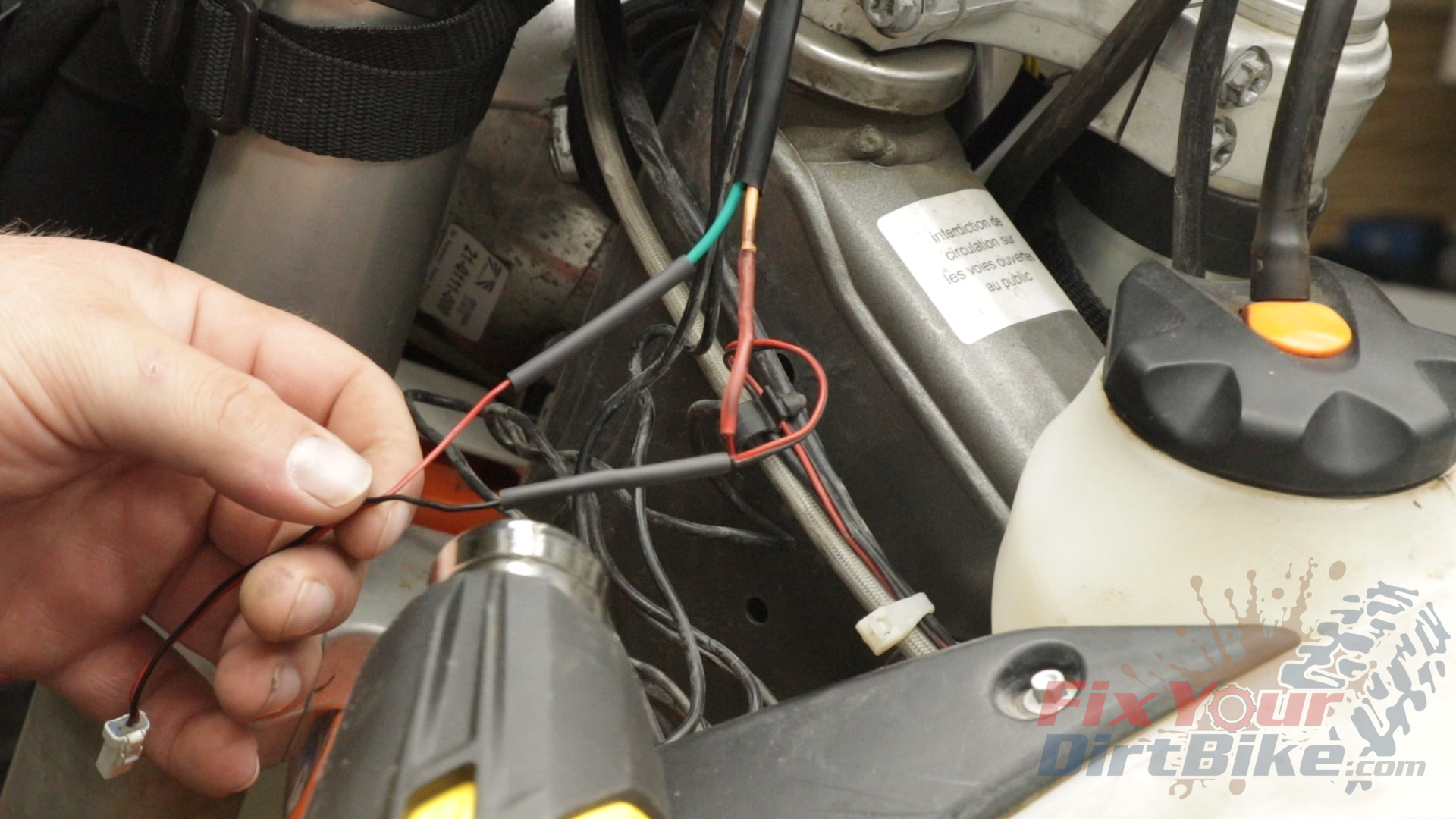

I connected the battery side positive to orange, then the voyager side positive to green to add the switch into the circuit.9 - Connect Switch Wires Then I reconnected the black negative wires.

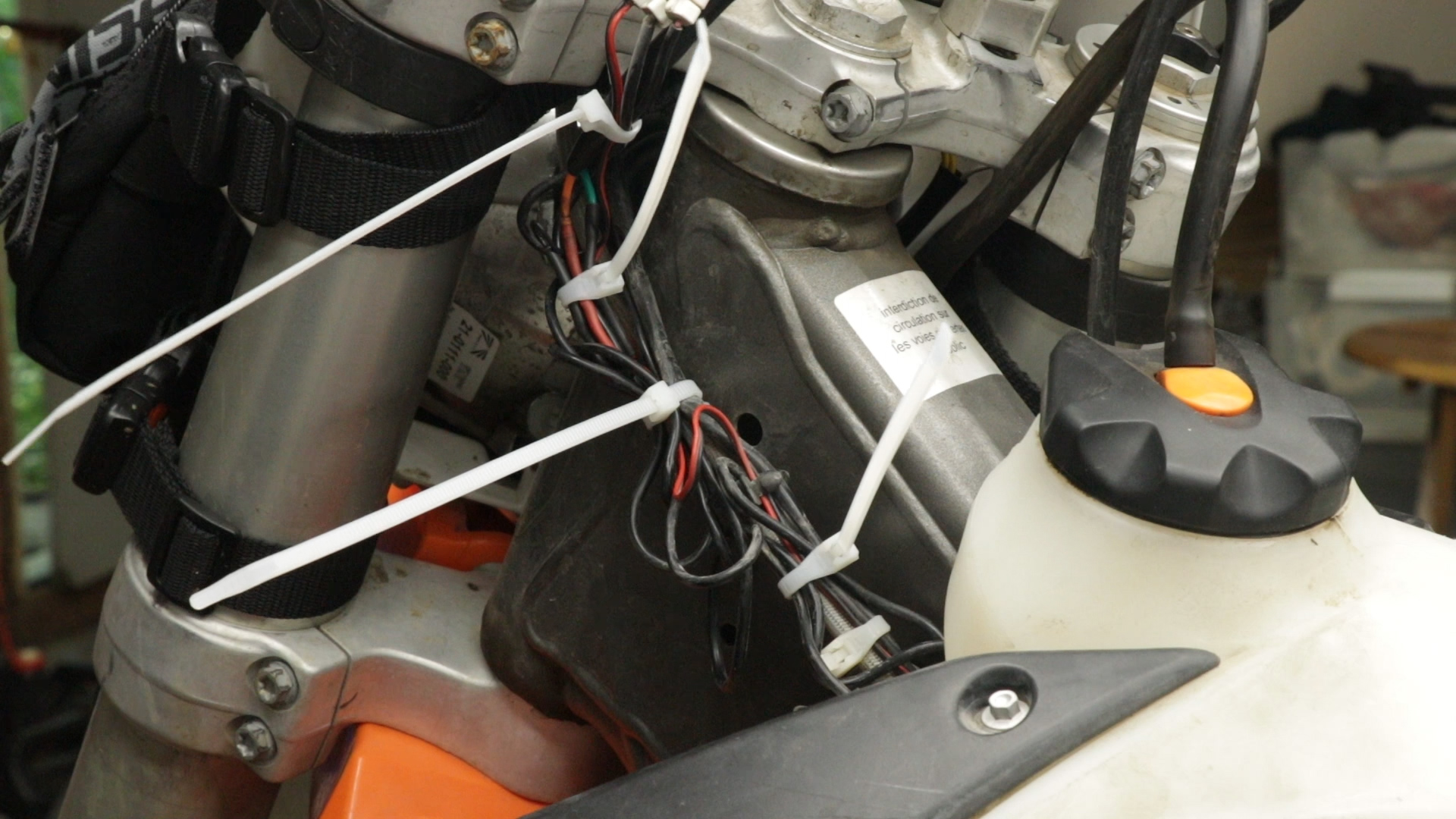

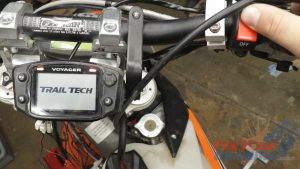

I tested to make sure everything is connected correctly; then, I cleaned up the wiring as well as I could.11 - Test Trail Tech Power 12 - Clean Up WiresIf you have questions about this install, please let me know in the comments or on social.
