2-Stroke Carb Tuning And Adjustment

This 2-stroke carb tuning guide will give you all the information you need to tune your 2-stroke carburetor for peak performance, no matter the make or model. Once you understand the basic functionality of one 2-stroke carburetor, you can apply that understanding to ANY carburetor.

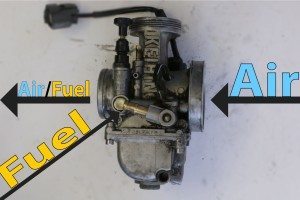

2-Stroke Carb Tuning - Air Fuel MixAlmost all 2-stroke carbs operate the same way. Although some may have different configurations or features, they all do the same thing – mix fuel and air.

Knowing how to change your jets and needles is one thing, but it won’t do you any good if you don’t understand how the changes will affect your dirt bike.

Parts of the Carburetor and What They Do

Carburetor Body

  • Body – The carburetor body houses all the moving parts and jets, and mixes the air and fuel on its way to the cylinder.
  • Bowl – The carburetor bowl is located on the bottom of the carb and holds the fuel to be sent through the jets. The bowl also houses the float assembly.
2-Stroke Carb Body And Bowl
2-Stroke Carb Body And Bowl

Internal Carburetor Components

  • Float Assembly – The float assembly sits inside the bowl to regulate the fuel level in the carburetor bowl. The floats are made of hollow plastic or metal connected to the carburetor body by a hinge. These floats need to be in good shape. No 2-stroke carb adjustments will work if the bowl is always flooding.

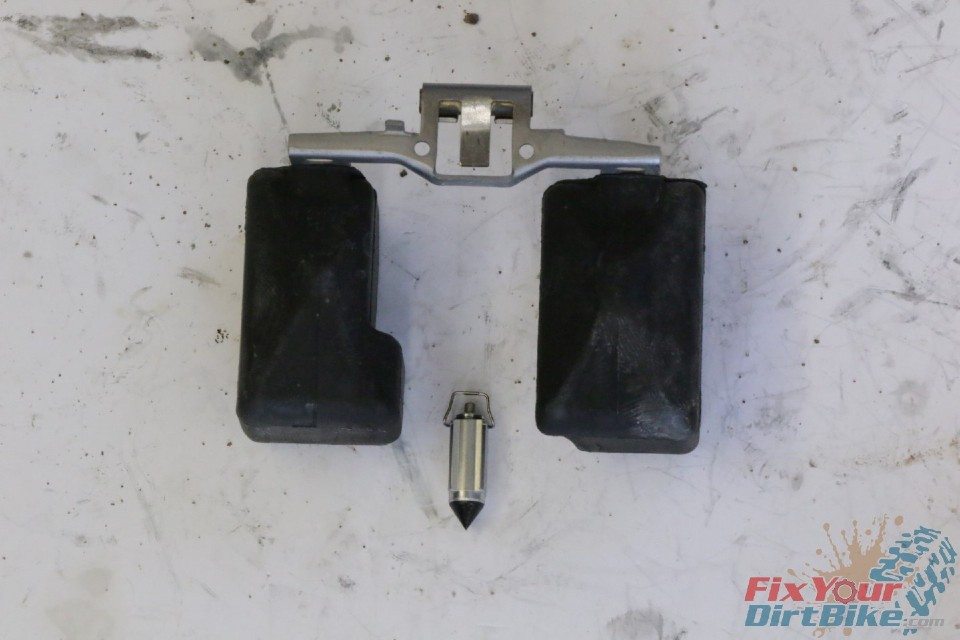

    Plastic Float assembly
    Plastic Float assembly
  • Float Valve – The float valve regulates the flow of fuel from the fuel tank to the carburetor bowl.

    2-Stroke Carburetor Float Valve Seat
    2-Stroke Carburetor Float Valve Seat

Air/Fuel Flow

  • Pilot Air Screw – Controls idle speed by regulating the amount of air passing through the pilot jet passage. This is where you will spend a lot of time during 2-stroke carb tuning. Getting that idle just right can be tricky sometimes.

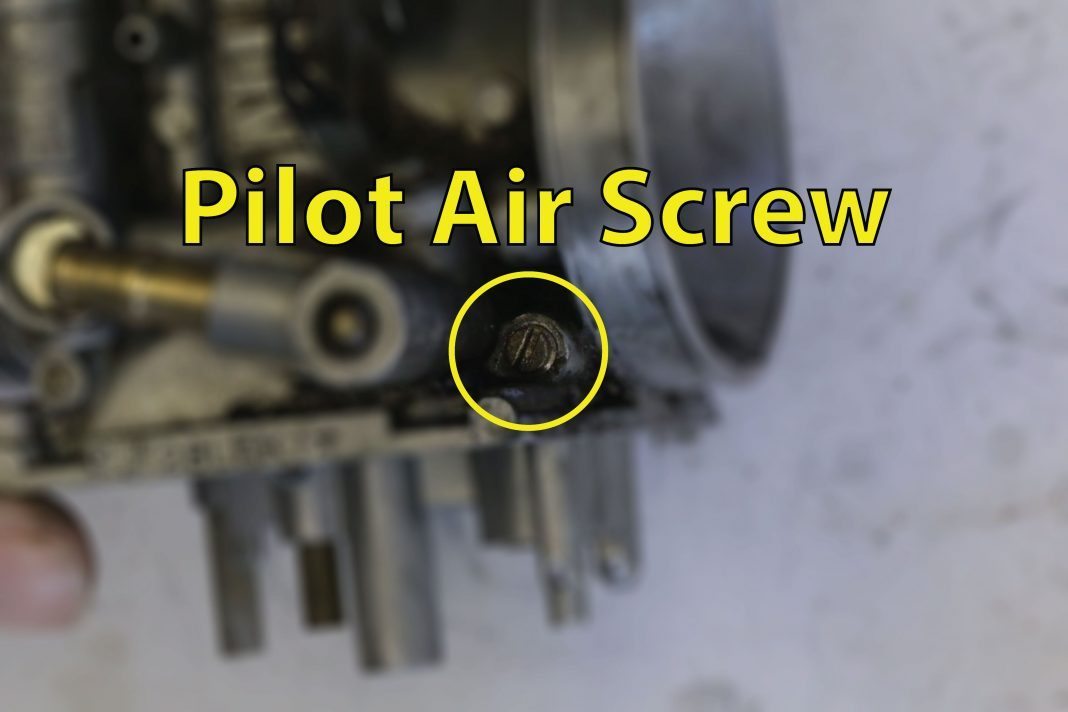

    Pilot Air Screw
    Pilot Air Screw
  • Throttle Valve – The throttle valve is directly connected to the throttle cable and regulates the flow of air through the carburetor. You will almost always find a slide style throttle valve on 2-stroke carburetors. They come in many shapes, but their function is the same.

2-Stroke Carburetor Jetting Structure

Slow Jet

2-Stroke Carb Adjustment - Slow Jet
2-Stroke Carb Adjustment – Slow Jet

The slow jet works with the pilot air screw. This system controls the air-fuel ratio from closed throttle to ¼ throttle. The slow jet draws fuel from the bowl and mixes it with air from the pilot air jet passage. The atomized air/fuel mixture then passes into the throat of the carburetor. Turning the pilot air screw in will richen the air/fuel mixture while turning the screw out will lean out the mix. The slow jet is interchangeable with jets that will provide a leaner or richer air-fuel mixture. Replacing the existing slow jet with a higher-numbered jet will make the mixture richer, while a lower-numbered jet will make the mixture leaner.

Jet Needle

The jet needle is connected to the throttle valve and controls the mixture from approximately ¼ – ¾ throttle. The needle seats into the needle jet and regulates the air-fuel mixture from the jet to the carb throat. During your 2-stroke carb adjustment, pay close attention to the needle. The jet needle regulates fuel by its taper, diameter, and clip position. In the closed throttle position, the tapered needle shuts off flow from the needle jet. As the throttle is opened, the needle allows fuel to pass by the taper and between the straight portion of the needle and jet wall. The position of the needle in the jet can be adjusted by removing the needle clip and positioning it on a higher or lower groove in the needle. Raising the clip will lower the needle into the jet, creating a lean mixture; lowering the clip will raise the needle, creating a rich condition.

Main Jet

The main jet is screwed to the bottom of the needle jet and controls the mixture from approximately ¾ to full throttle. The main jet is numbered and is interchangeable with jets that will provide a leaner or richer air-fuel mixture. Replacing the existing jet with a higher numbered jet will make the mixture richer, while jets with a smaller number will make the mixture leaner.

2-Stroke Carburetor Main Jet
2-Stroke Carburetor Main Jet

Why Proper Carb Tuning Is Critical For 2-Stroke Engines

Improper 2-stroke carburetor tuning will have a much more significant effect on a 2-stroke engine than a 4-stroke because the premixed oil lubricates the crankshaft.  A rich mixture will cause poor performance, but a lean mixture can destroy your engine (over time).

At its most basic level, an engine is just an air pump, and what is mixed with the air is what makes it run. All a carburetor does is let fuel be sucked into the engine with the air.  This is where the sizing of the jets comes in.

Your carburetor needs to be adjusted according to the ambient temperature, humidity, and altitude of operation due to the oxygen density of the air changing with these variables.

If you have modified your 2-stroke with different reeds or an aftermarket exhaust pipe, you need to account for the increased airflow as well.

Carburetor Tuning Variables

Without getting into too much detail, below are some general guidelines on oxygen levels in the air.

  • Temperature – The colder the temperature, the denser the oxygen levels.
  • Humidity – More humid the air is, the less dense the oxygen levels.
  • Altitude – The higher you go, the thinner the air gets, resulting in lower oxygen levels.

If you want to get into the physics of air density, click here, otherwise, the above information will work.

Changing the carburetor jets is how you compensate for changing oxygen density: more oxygen requires more fuel to even out the air/fuel mixture.

Tuning Your 2-Stroke Carburetor For Peak Performance

There are three ways to tune your carburetor to the temperature and elevation.

  1. Factory Supplied Chart – If you’re lucky, your bike will have a jetting chart available from the manufacturer, so check with them first.
  2. Original Factory Configuration – If you know your carburetor’s factory settings, you will have a good starting point and can make more accurate adjustments.
  3. From Scratch – If you are starting from scratch, you will have to begin by making major adjustments and gradually narrow your tuning down. (Better in the long run.)

With each method, the only way to properly tune your carb is to keep track of every change you make and record the results.

Too Much (rich) Or Too Little (lean) Fuel?

The last piece of the 2-stroke carb tuning puzzle is knowing how to identify an unbalanced air/fuel ratio.

The simplest way to tune your carburetor air/fuel mixture is to look at your spark plug.

  • If the plug is black with soot, the mixture is too rich.
  • If the plug is white (burned), the mixture is too lean.

You can also determine the air/fuel ratio based on the performance of your dirt bike. If your bike bogs down under acceleration, the mixture is too rich. If you take off quickly, but your bike lacks power overall, the mix is too lean.

Fixing this is as simple as changing the main jet. Then you can go ride, but if you want to dial in the tuning of your carburetor from idle to full throttle, keep going!

Remember when the jets and needle come into play, and test the performance at each throttle position:

  • Slow Jet – Closed to ¼ throttle
  • Jet Needle- ¼ to ¾ throttle
  • Main Jet – ¾ to full throttle

Look for The Signs Of A Bad Ratio

  • Too much smoke = Rich
  • Too little smoke = Lean
  • Un-burnt fuel/oil sludge leaking from the muffler = Rich
  • Rough idle/no idle = Slow Jet System
  • Backfire = Lean
  • Bogging

Listen To The Bog

There are two types of bogging that will tell you if you are rich or lean.

  • Rich bogging sounds more of a “chug chug chug” sputter under throttle.
    • The “chug” is caused by too much fuel in the cylinder, resulting in incomplete combustion.
  • Lean bogging is a sustained “booooouuuuuuuuuhhhhhhhhg” under throttle.
    • The “bouhg” is caused by too much oxygen combusting, which does not create power on its own.
  • Typically, high-end bogging is lean, low-end bogging is rich, but the opposite is still possible.

You will need to start with a general diagnosis and narrow down what needs to be adjusted.

Follow the flowchart below to start tuning your carburetor! Remember to record every change you make along with the temperature and altitude. The following tuning flowchart is based on:

  • The ignition system is operating correctly
  • The fuel is fresh and mixed properly
  • The carburetor is clean, and the floats are adjusted
  • The air filter is clean

Side Note: If your carburetor is equipped with an idle adjustment knob, set it to a neutral position before adjusting the pilot air screw. (The idle knob is used for quick adjustments to the air-fuel mix and should not be used for tuning.)

2-stroke Carburetor tuning flow chart

**If you are experiencing poor performance, check the following before re-jetting the carburetor!!**

  • Bad fuel
  • Wrong fuel/oil ratio
  • Throttle cable dragging or out of adjustment
  • Air filter
  • Fuel flow – filter or fuel line plugged
  • Timing
  • Choke
  • Muffler
  • Brakes

If you have any questions or anything to add, please leave them in the comments or on our FaceBook page!
