1997-2001 Honda CR250 – Final Detail & Preseason Prep

0
98
1997 - 2001 Honda CR250 - Final Detail - Featured

1997 - 2001 Honda CR250 - Final Detail - FeaturedAfter five years of nights and weekends, I’m finally done rebuilding my CR250, and just in time for quarantine season!

All that’s left to do is give it a final detail and preseason prep, and I’m ready to.. Sit and… look at it.

For pre-season detail, I like to strip the plastics, gas tank and sub-frame so I can get to all the hard to reach areas.

I’ll show you my routine, and since I have plenty of time on my hands, I’m going to try out some products I’ve never used.

Pre-Service Notes

  • If you need parts and tools, make sure to buy them here!
  • Every product link in this article goes to Revzilla.com
  • Pictures with captions are after the steps below.
  • If you need any help don’t hesitate to ask!

My Detailing And Prep Go-To Products

New Products I’ve Added To My Shelf

Products I Tried But Probably Won’t Work For Me

  • PB Blaster Silicone Lubricant

Plastics Prep

These plastics are halfway to fucked, but they’re still in one piece, so I’m going to try and give at least one more season before I spend $180 on a new set.

This is, after all, my beater bike.

The easy way to remove the old numbers is with heat. You can use a torch, heat gun, or just lay your plastics in the sun for a while. Whatever method you choose, you need to be careful not to get the plastics too hot because they will warp and become brittle.

You want to apply just enough heat to get under the numbers with a razor; after that, all you need to do is pull. Follow up with some toluene or Xylene to remove any adhesive residue.

I like to pre-soak my plastics with soapy water before I hit them with the pressure washer. Or that’s how I used to do it because I was recently introduced to S100, and pre-soaking is now a waste of time.

Remove The Old Numbers With Heat And A Flat Razor
Remove The Old Numbers With Heat And A Flat Razor

Frame Prep

Whether or not you use a pressure washer to clean your frame, you need to protect the exposed air, fuel, and electrical components.

  • Plug your main fuel line with a CLEAN bolt and seal it with electrical tape.
  • If you have a power jet solenoid, wrap the harness with a plastic sack and electrical tape.
  • Take the clamp from your airbox and clamp a plastic sack over the carburetor intake, and secure it with electrical tape.
  • Cover your CDI with a plastic sack and shove it down between the frame rails.
  • Find your engine stop switch connections, and wrap them in electrical tape too.

These electrical components are designed to be waterproof, but taking 5 minutes to be sure, could save you a considerable headache.

Plug The Carburetor Fuel Line And Wrap Wiring Harness In A Plastic Sack And Electrical Tape

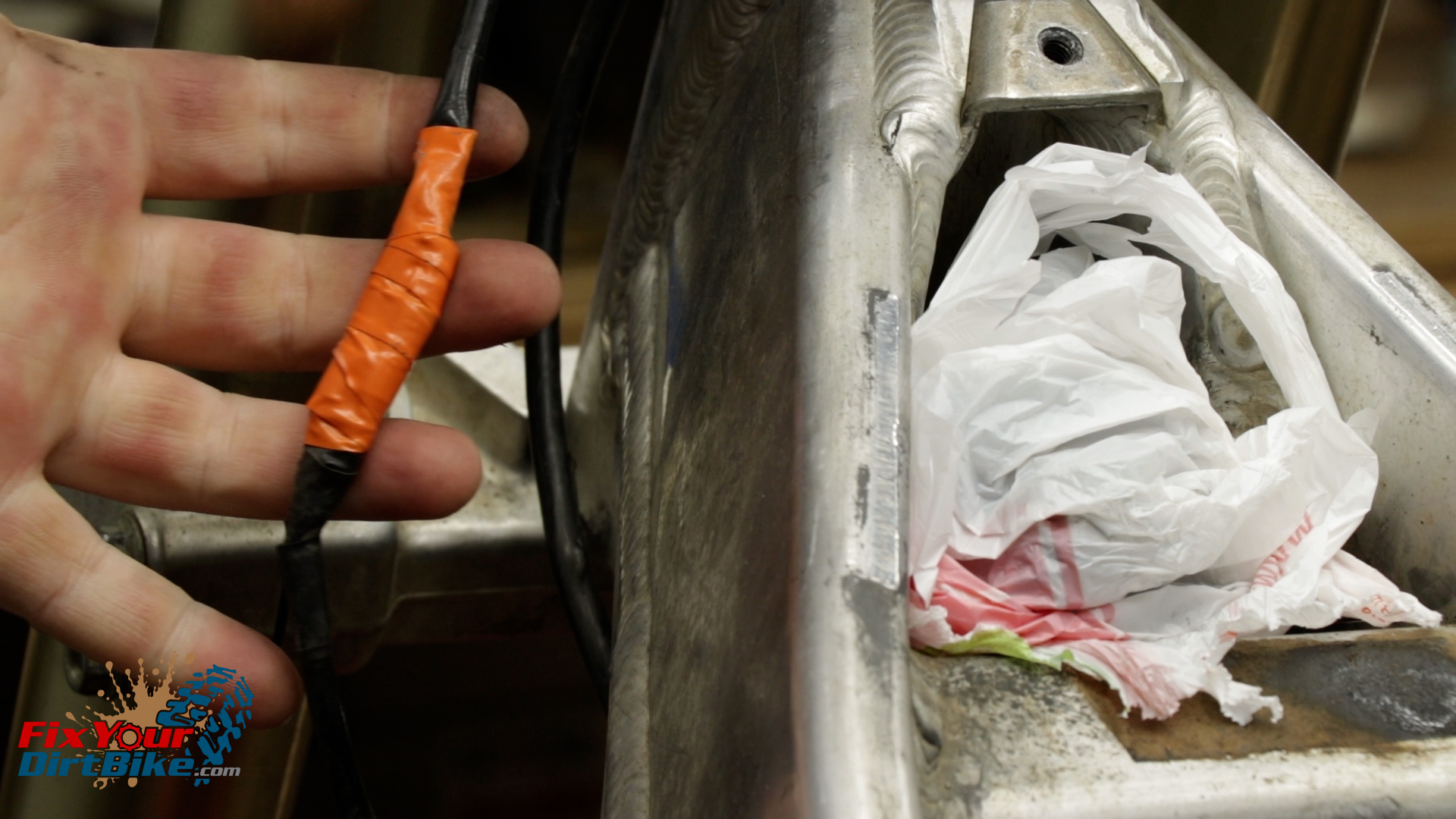

Cover The Carburetor Intake With A Plastic Sack And Electrical Tape Cover The CDI With A Plastic Sack And Wrap The Engine Shut Off Switch With Electrical Tape

Gas Tank Cleaning

  • Drain your gas tank and remove the petcock.
  • Clean the petcock body, fuel filter, and O-ring with a soft bristle brush and carb cleaner.
  • This tank is plastic, so I can just clean it out with water.

Silencer Ressurection

New ProductPJ1 Fast Black

My silencer packing was still in good shape, so I’m going to keep using it.

However, the silencer body has seen better days, so I’m going to try out some high heat paint and try to bring it back to life.

The paint I’m going to try out is PJ1 Fast Black. Fast Black is a high gloss black coating that can withstand up to 500 degrees.

I started with a thorough cleaning with parts cleaner, followed by a once over with 120 grit sandpaper; then I followed that with a wipe down of Xylene.

I applied three coats of paint with 30 minutes between the first and second coat, and about 4 hours between the second and third coats, to ensure the first two coats… no, I got distracted.

I like the way it looks on my silencer, so I might paint the engine next winter. Or next week, when I get bored, the backyard gets really small, really fast.

PJ1 Fast Black
PJ1 Fast Black
Silencer Coated In PJ1 Fast Black
Silencer Coated In PJ1 Fast Black

Air Filter

Go-To ProductPJ1 Filter Cleaner And Oil

You should clean your air filter after every ride, so this should not be anything new to you. I do, however, want to show you my go-to filter cleaner and oil combination, which is PJ1.

I like to soak my filter with the PJ1 cleaner, then let it hang over a bucket for about 10 minutes before I rinse it and hang it out to dry.

This filter has about 3 hours on it in my backyard, and it was LOADED with dust, meaning the PJ1 filter oil did its job.

Besides the performance, PJ1 is my go-to cleaner and oil combination for two reasons:

  • One, they are specifically made to work together. The cleaner completely breaks down the oil inside the filter, taking the garbage with it.
  • And two, it doesn’t take much, so each can will typically last me a whole season.
PJ1 Filter Cleaner And Filer Oil
PJ1 Filter Cleaner And Filer Oil
Look What Came Out Of My Filter
Look What Came Out Of My Filter

Pre-Wash Notes

You do not need a power washer to wash your bike, but it does make things easier. That being said, if you DO use a power washer, you need to be careful where you point that thing because you can do some severe damage.

The areas you need to avoid are:

  • The radiator
  • Anything electrical
  • Your carburetor intake
  • External seals like the output shaft and kickstarter
  • And don’t spend too much time in direct contact with gaskets.

Even a basic electric pressure washer like mine can shred a seal and blow through a gasket, so be careful! Don’t start your season with a vacuum leak!

Power Washing

New ProductS100 Total Cycle Cleaner

No matter how dirty my bike is, I always start with basic power washer detergent from a foamer, then wash that off with a wide nozzle.

Earlier I mentioned pre-soaking my plastics is pointless now, thanks to S100 total cycle cleaner. I’ve never used S100, as my routine of pre-soak and pressure has always done the job.

I was skeptical at first, because I’ve spent so much time using chemicals from a spray can, that anything in a spray bottle wouldn’t be strong enough.

Well, I was very wrong.

One application of S100 removed dirt and grease from the frame and plastics that I had pretty much given up trying to clean without a sandblaster. So that’s two new products added to my shelf.

S100 Total Cycle Cleaner
S100 Total Cycle Cleaner
S100 Power Wash Results
S100 Power Wash Results

Wheels

Go-To Product – Stiff Brush & Elbow Grease

A power washer makes washing your bike easy, but there’s no substitute for a stiff brush and elbow grease.

I like to go around my rim several times with a stiff brush and soapy water to clean off any dirt or corrosion that washing missed. This gives me a chance to examine my rims closely. If I find any excessive corrosion or damage, I can fix it now, instead of peak riding time.

Chain Maintenance

Go-To ProductMaxima Chain Wax

What to use on your chain is always a topic of debate. I’m not going to tell you one coating is better than another because it all depends on your riding conditions and personal experience.

However, there is one definite truth about chain maintenance: Clean the damn thing after every ride!

A neglected chain can turn into a long walk. By the way, what do you carry in your trail pack? Hopefully more than Gatorade and Clif bars!

For the riding conditions, I’m expecting, which is none, I’m going to use Maxima Chain Wax. I like to use wax when I’m storing bikes because it’s great at repelling moisture. The catch with wax, though, is the chain needs to be warm for optimal adhesion.

If for whatever reason, you can’t ride, a torch or heat gun will do the trick. The chain does not need to be hot, just warm to the touch, so keep the heat even and the chain moving. Apply your coating and wipe off any overspray.

Maxima Chain Wax
Maxima Chain Wax

Cable Lubrication

Go-To ProductsPJ1 Cable Lube & Motion Pro Cable Luber

New Product – PB Blaster Silicone Lubricant

Lubricating your cables can get messy, so keep your towels handy. I am using PJ1 cable lube, but any liquid lubricant will work.

PJ1 Cable Lube
PJ1 Cable Lube

White lithium grease would be excellent, but most aerosol lithium is designed to foam up, and it won’t make it to the other end of the tube very easily.

PB Blaster just came out with a silicone lube that looks like it would work, but it doesn’t have the cleaning agents that PJ1 has.

PB Blaster Silicone Lubricant
PB Blaster Silicone Lubricant

You will need to disconnect your throttle and clutch cable on both ends, but you do not need to remove them completely.

  • Remove the throttle cable housing cover, followed by the cam wheel.
  • Unhook the cable and unscrew it from the housing.
  • If you don’t have a lubrication clamp, you can spray from here.
  • If you do have a clamp, pull the cable mount away from the cable jacket.
  • This cable lubrication clamp only costs $10 and saves a lot of time and mess.
  • Just seat the cable end in the rubber, and clamp it down.
  • Stick the spray straw in the grommet hole and start spraying in bursts.
  • Some lube will spray out, so wrap your cable end in a shop towel.
  • Watch the other end of the cable, you will see the old dirt getting pushed out, and when you start to see clear lube, you’re good to go.
  • Reassemble your throttle cable housing with fresh lubrication.
Motion Pro Cable Lubrication Clamp
Motion Pro Cable Lubrication Clamp

I avoid using regular grease in the throttle cable housing, simply because I don’t want to deal with it the next time I take it apart.

I’ve been using white lithium grease for a long time, but this time I want to try that PB Blaster Silicone spray I mentioned earlier. This silicon spray is probably too thin for this application, but I’ll give it a try anyway since I have nothing better to do.

Lubricate The Throttle Assembly
Lubricate The Throttle Assembly

Frame Polish

Go-To ProductMotul E6

I don’t normally use polish on dirt bikes, but you can’t miss this fat aluminum frame rail, so I’ll give it a quick buff.

My go-to for polishing metal is Motul E6 because a little bit goes a long way.

What you start with determines what you end up with, and considering the state of this frame rail, I’m pretty happy with the result.

Motul E6
Motul E6
Motul E6 Polish Results
Motul E6 Polish Results

Finish Coating

Go-To ProductMaxima SC1

Before I put everything back together, I coat the plastics and parts of the frame in Maxima SC1. Maxima SC1 is a coating that you can either buff to get a nice sheen or leave wet to minimize dirt and mud build-up.

Maxima SC1
Maxima SC1

By applying SC1 to parts before assembly, you can get to the hard to reach places, making future cleaning much easier. Key spots on the frame would be the hubs, inside the air box, the radiator, the drive gear, and any little spot mud likes to build up.

I apply SC1 to both sides of the plastics, then let them dry for a while. After I assemble everything, I’ll go over the outsides of the plastics with a microfiber cloth to get as much shine out of the old plastics as I can. Handling the wet plastics can get messy, so keep your towels handy.

Thank You!

This is most likely the last article for my CR250, and I want to thank you all for reading and commenting with questions. If you ever need help with your CR250, I’m always available on Facebook messenger.

1997 - 2001 Honda CR250 - Final Detail - Thank You!I’m very excited to move on to my next project bike. It needs a lot of work, it’s blue, and it rhymes with Shmamaha.
