1997-2001 Honda CR250 – Bottom End Rebuild – Part 4: Assembly & Install


How To Assemble And Install The Crankcase On Your 97-01 Honda CR250

1997 - 2001 Honda CR250 - Bottom End Service - Part 4 - Assembly And InstallBefore you begin assembling your bottom end, double-check all mating surfaces, and use new gaskets, O-rings, and dowels.

Give every bearing a coating of 2-stroke oil, and tape the splines of the crankshaft and transmission.

The Tools You Will Need

  • Crank Puller Tool
  • 8mm Socket
  • 1/4 in Socket Wrench
  • Seal Sized Sockets
  • Calipers
  • Razer
  • 2-Stroke Oil

The Parts You Will Need

  • New ’97-’01 Honda CR250 Case Gasket
  • Coolant Passage O-Ring
  • Dowels

Remember, you can get all the tools and parts for this service through our partner links. It won’t cost any more, and it helps us pay the bills!

Pre-Service Notes

Right Case Assembly

  1. Install the crankshaft on the right side first.
  2. Assemble your crankshaft puller, and tighten the nut until the crankshaft is completely seated in the case.
  3. The crankshaft will rotate during install, so make sure your connecting rod stays straight.
  4. Flip the case and oil the bearings with 2-stroke oil.
  5. Mesh the transmission main shaft and countershaft, make sure the washers are still on the ends of the gear stacks, and install them into the right case.
  6. Install the shift forks.
  7. The center fork goes on the main shaft, with the makings face down.
  8. The left fork goes on the top of the countershaft, and the right goes on the bottom of the countershaft.
  9. Install both forks with the markings facing up.
  10. Install the shift drum.
  11. Rotate the drum, so it engages with the center fork pin.
  12. Align the fork with the case bore, and install the short shift fork shaft.
  13. Repeat with the left and right forks.
  14. Check the transmission operation by turning the countershaft and shift drum.
  15. The transmission may feel hard to shift, but remember that you are using your hand, not your foot, and the gears are meant to move side to side, not up and down.
1 - Install Crankshft In Right Case First
Install Crankshaft In Right Case First

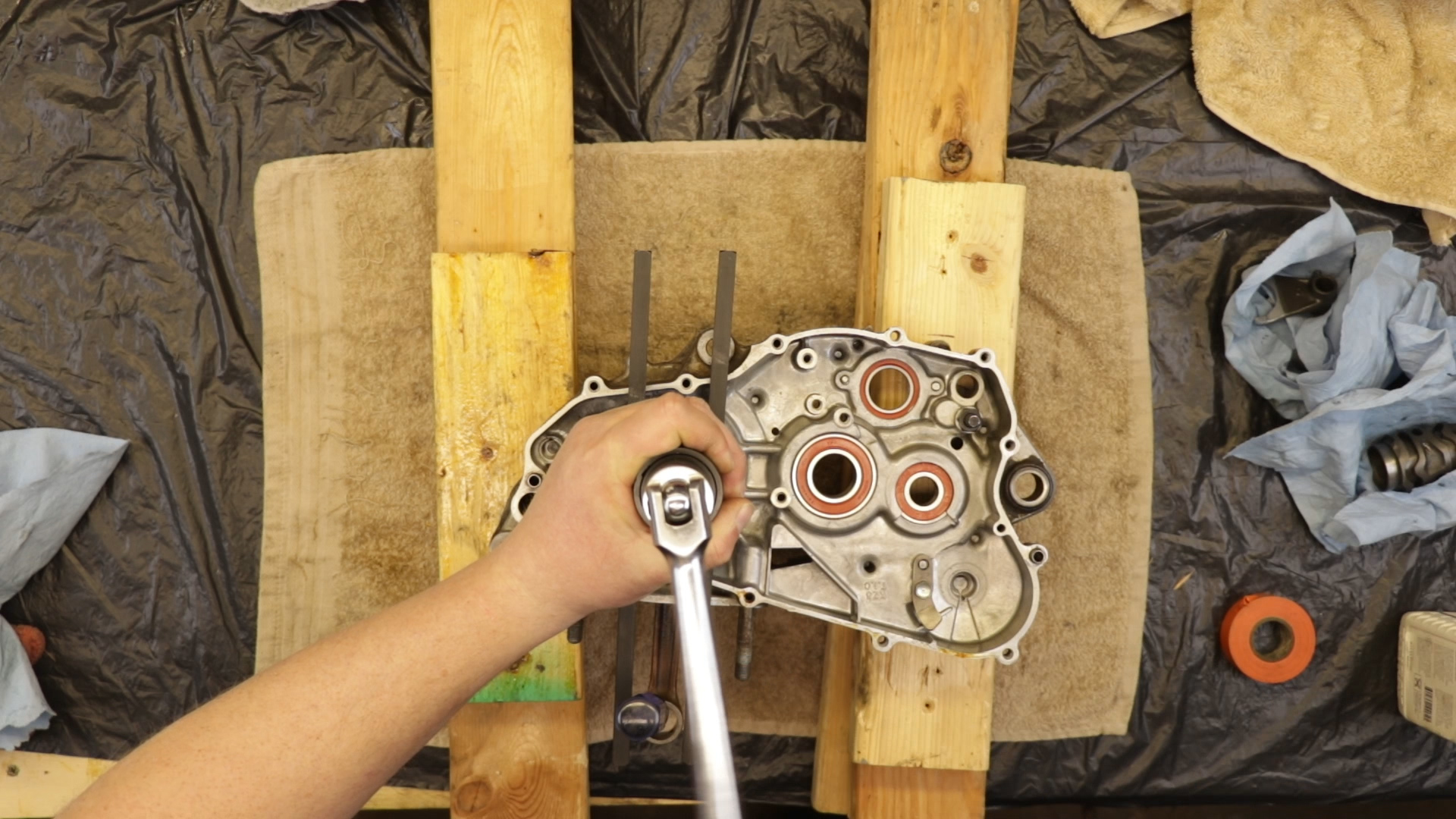

2 - Pull Crankshaft Into Case
Pull Crankshaft Into Case
3 - Oil Transmission Bearings With 2-Stroke Oil
Oil Transmission Bearings With 2-Stroke Oil

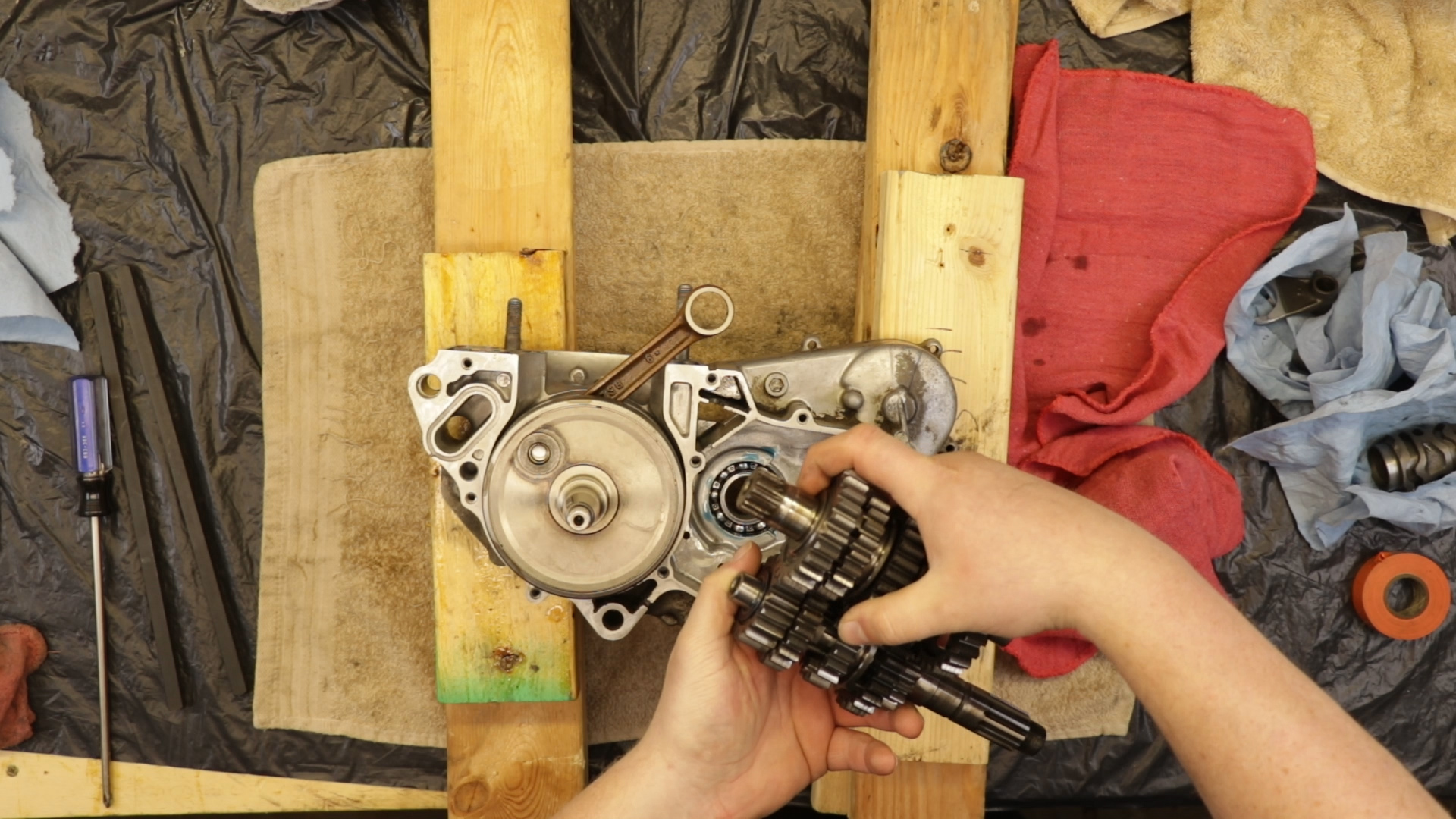

4 - Mesh And Install Transmission Assembly
Mesh And Install Transmission Assembly
5 - Install Shift Forks
Install Shift Forks

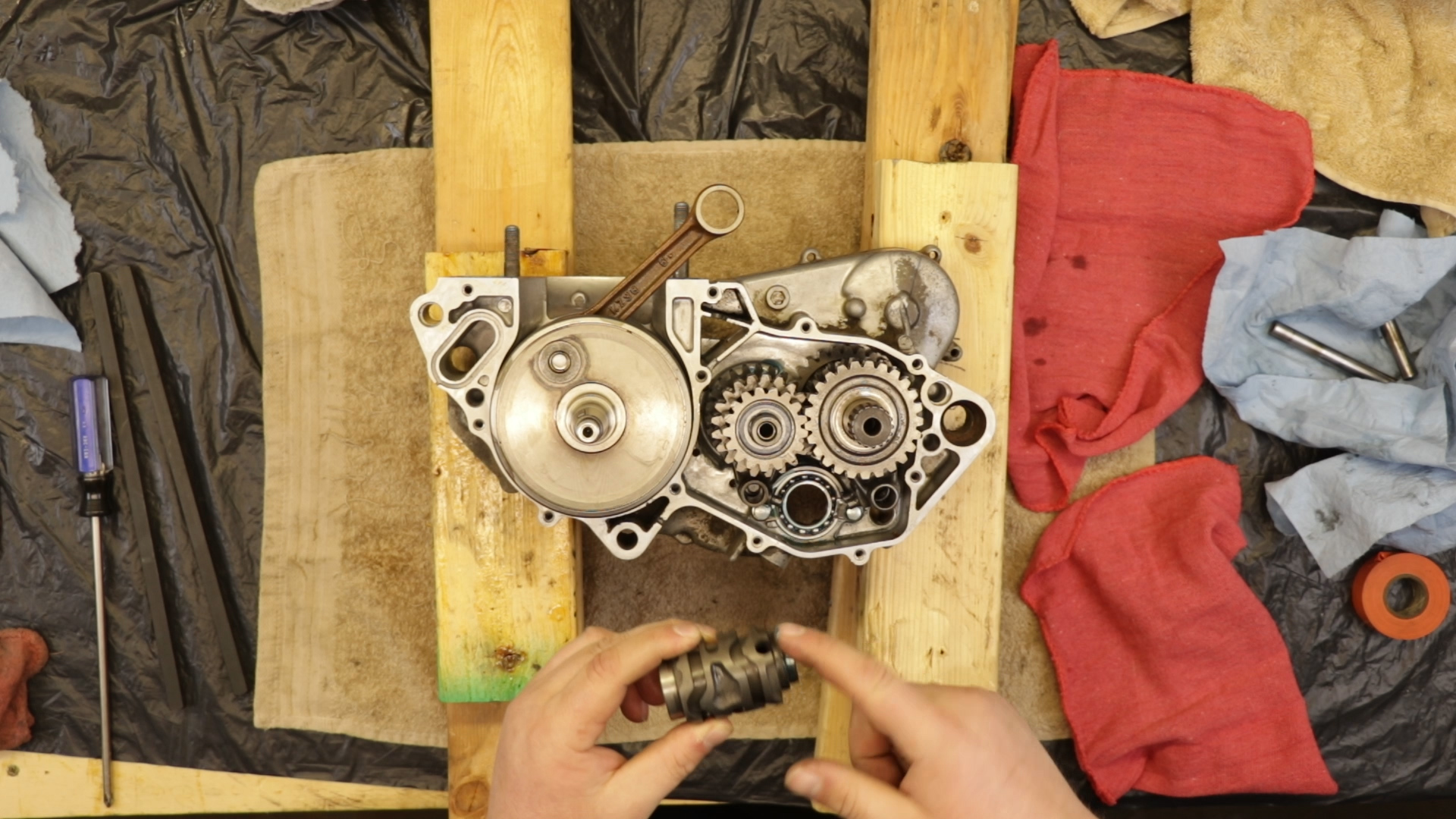

6 - Install Shift Drum
Install Shift Drum

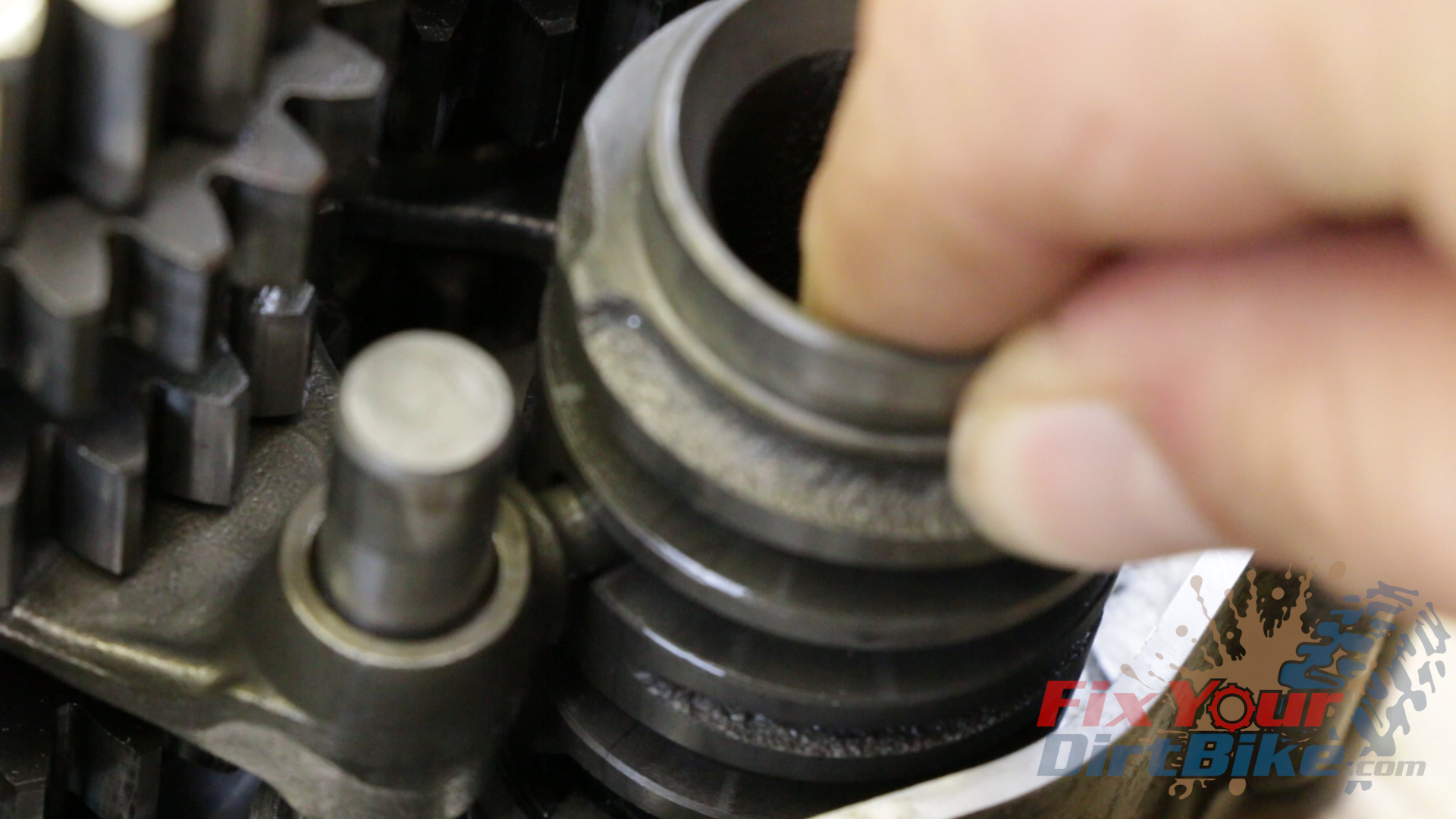

7 - Seat Center Fork Pin At End Of Drum Groove
7 – Seat Center Fork Pin At End Of Drum Groove

Related: What’s the point of rebuilding your 2-stroke engine if you don’t use a quality Premix?

Left Case Assembly

  1. Install the breather tube into the left case, and the block in the right case.
  2. Install your new dowels and lubricated o-ring.
  3. Place your gasket in the right case. Do not cut the top off yet.
  4. Apply 2-stroke oil to the left case bearings.
  5. Align the left case over the crankshaft and countershaft.
  6. Assemble your crank puller, and begin joining the case halves. Work slowly, and use a mallet when needed.
  7. Make sure to keep the case halves as even as possible.

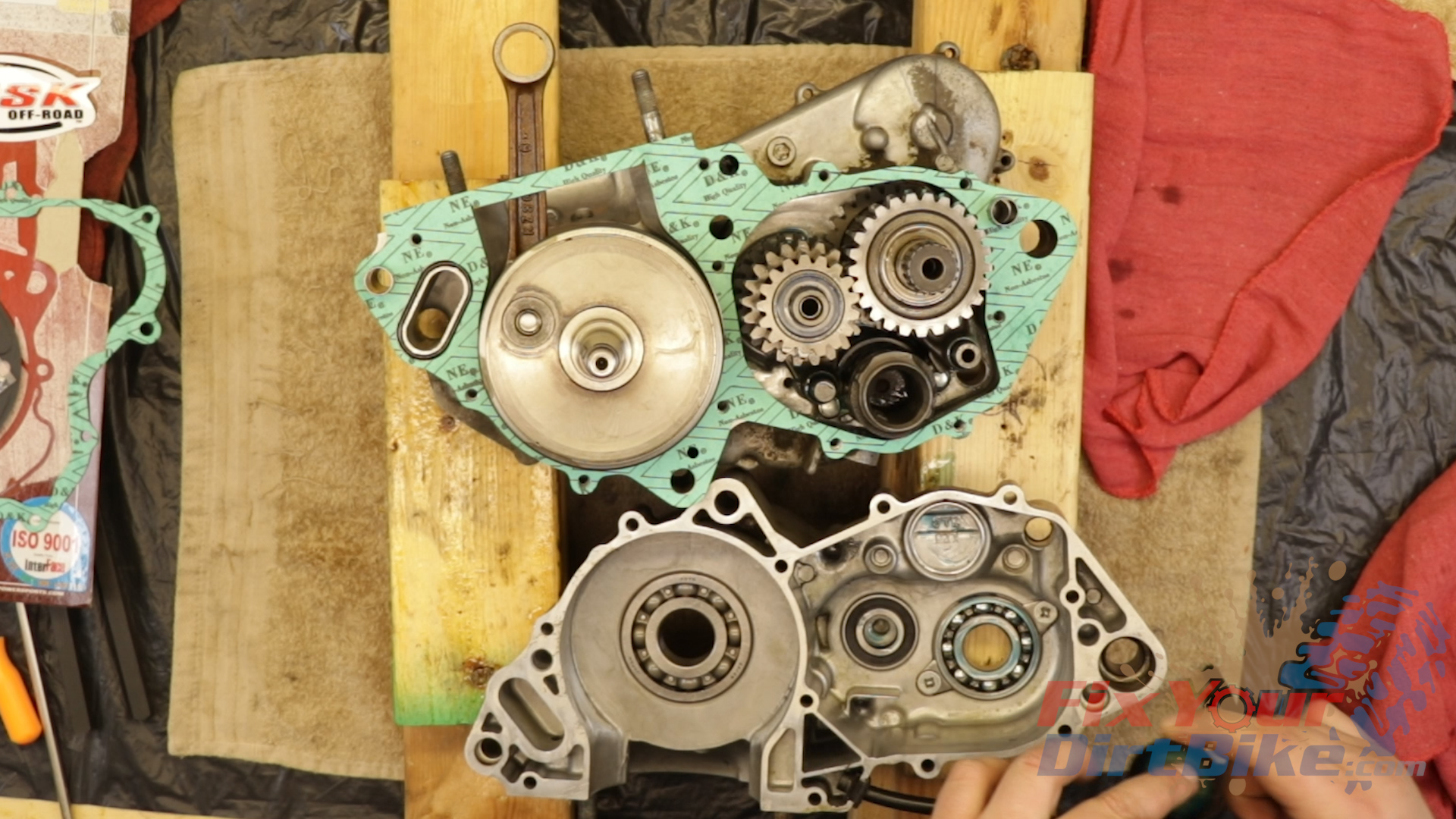

8 - Place Breather, Block, Dowels, O-ring and Gasket
8 – Place Breather, Block, Dowels, O-ring and Gasket
9 - Install Left Case Onto Crankchaft And Countershaft
9 – Install Left Case Onto Crankshaft And Countershaft
10 - Pull Crankshaft Into Left Case
10 – Pull Crankshaft Into Left Case

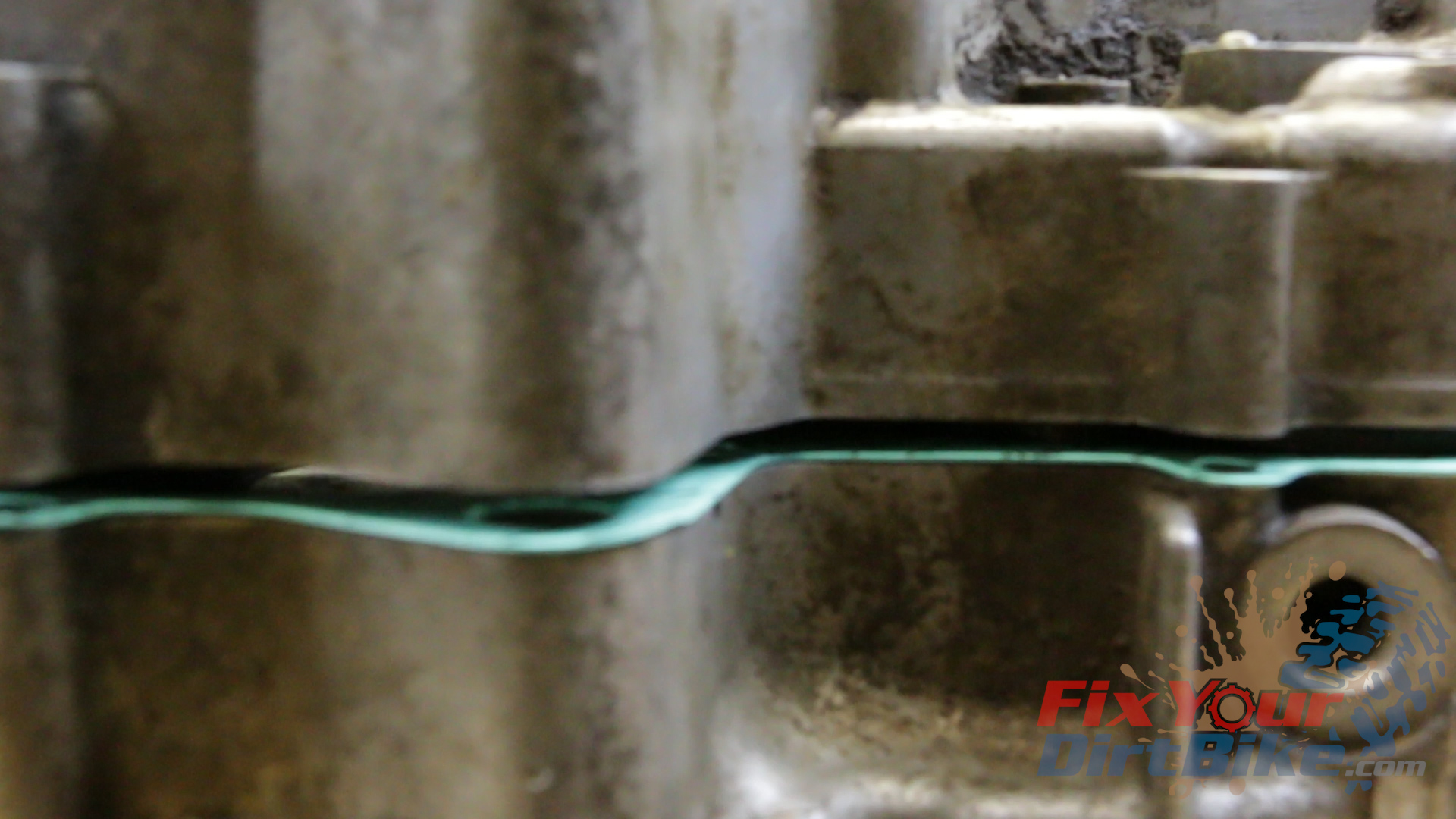

11 - Keep Case Halves Parallel
11 – Keep Case Halves Parallel

Related: Can you trust the oil injection system on your 2-stroke? I sure don’t!

Crankshaft Seals

  1. With the crankshaft installed and the cases mated, install the NEW crank seals.
  2. You can use a combination of the crankshaft puller to install the seals flush, and a large socket to seat it to the correct depth.
  3. The left seal needs to be no more than 2 mm below the top of the bore, and the right no more than 1 mm below the top of the bore to allow for adequate lubrication.

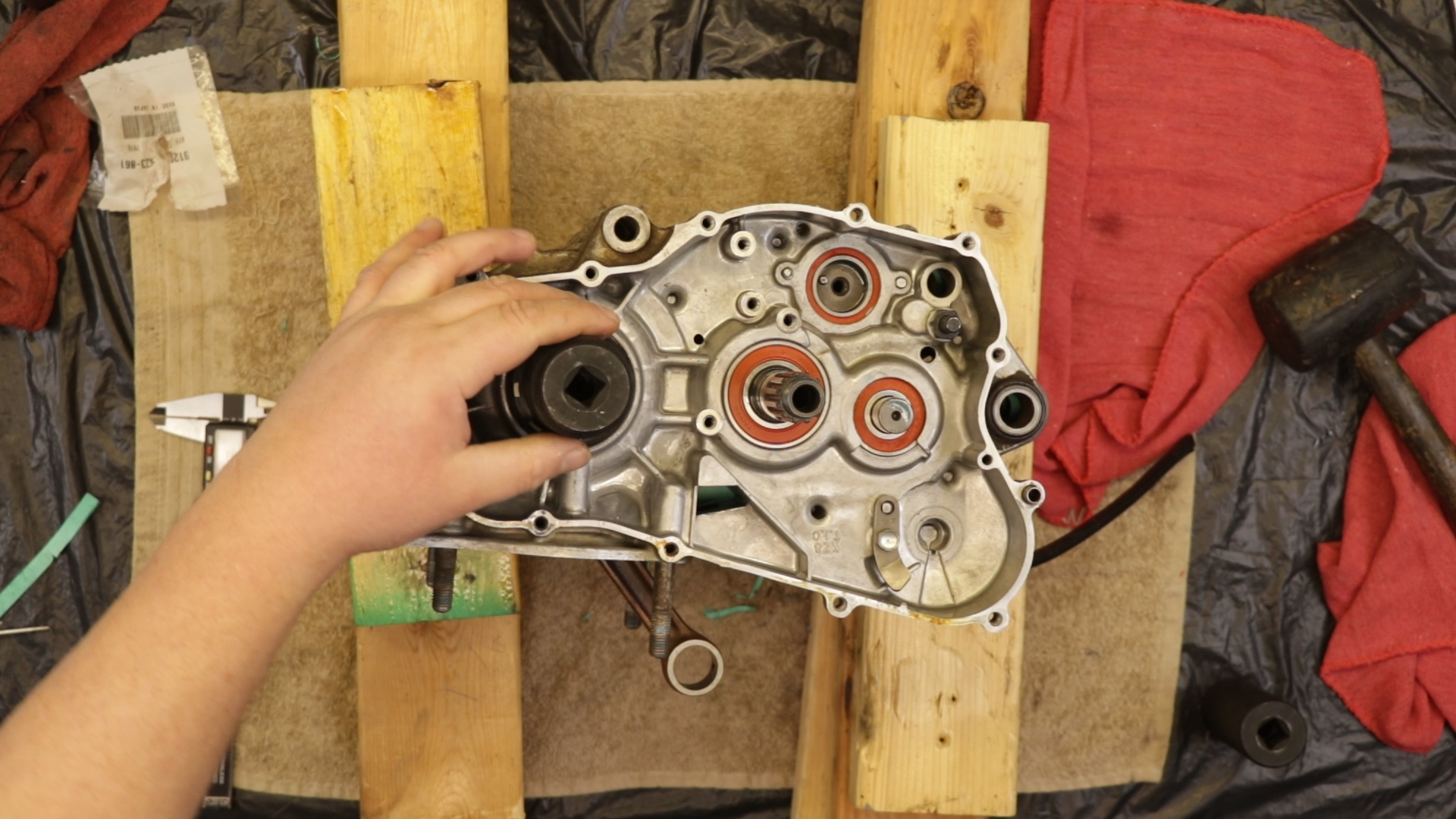

12 - Install Crankshaft Seals and Countershaft Seal
12 – Install Crankshaft Seals and Countershaft Seal

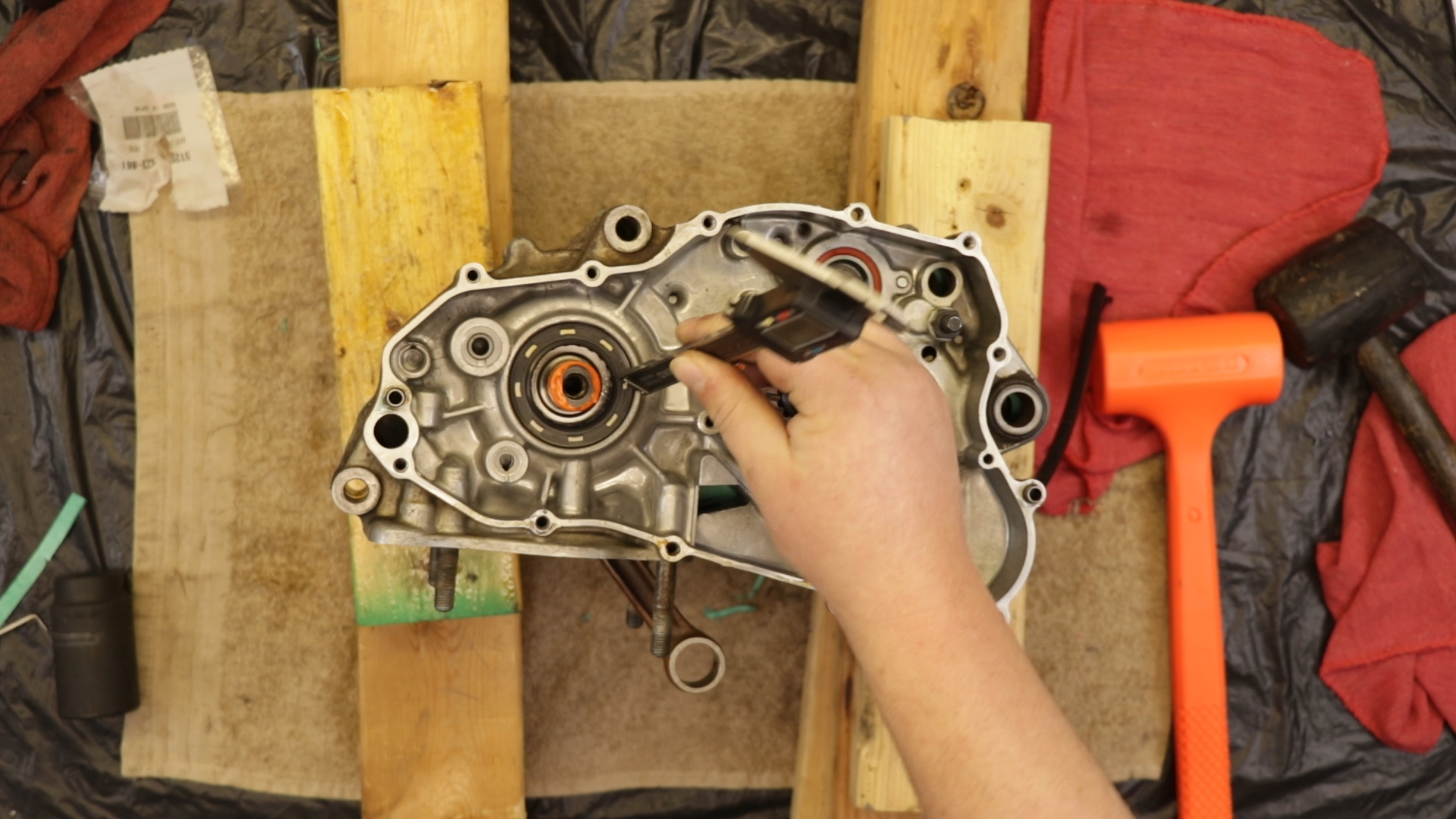

13 - Measure Seal Depth
13 – Measure Seal Depth

Crankcase Bolts

Transfer your bolts from your holder back to the case. With the bolts in the correct place, apply thread locker.

Hand tighten the bolts first, then begin tightening in a criss-cross pattern, one-half turn at a time until tight.

These bolts have no torque specifications, so use a ¼ inch ratchet to tighten them firmly, anything bigger and you risk stripping the case threads.

Remove excess gasket material. Be careful not to let any gasket material enter the crankcase.

Bottom End Install

  1. Install the bottom end to the frame backside first. Install the two mounting bolts from the left side.
  2. Install the swingarm pivot shaft after you replace the swing arm bearings.
  3. Reassemble the external shift mechanism and double-check the transmission.

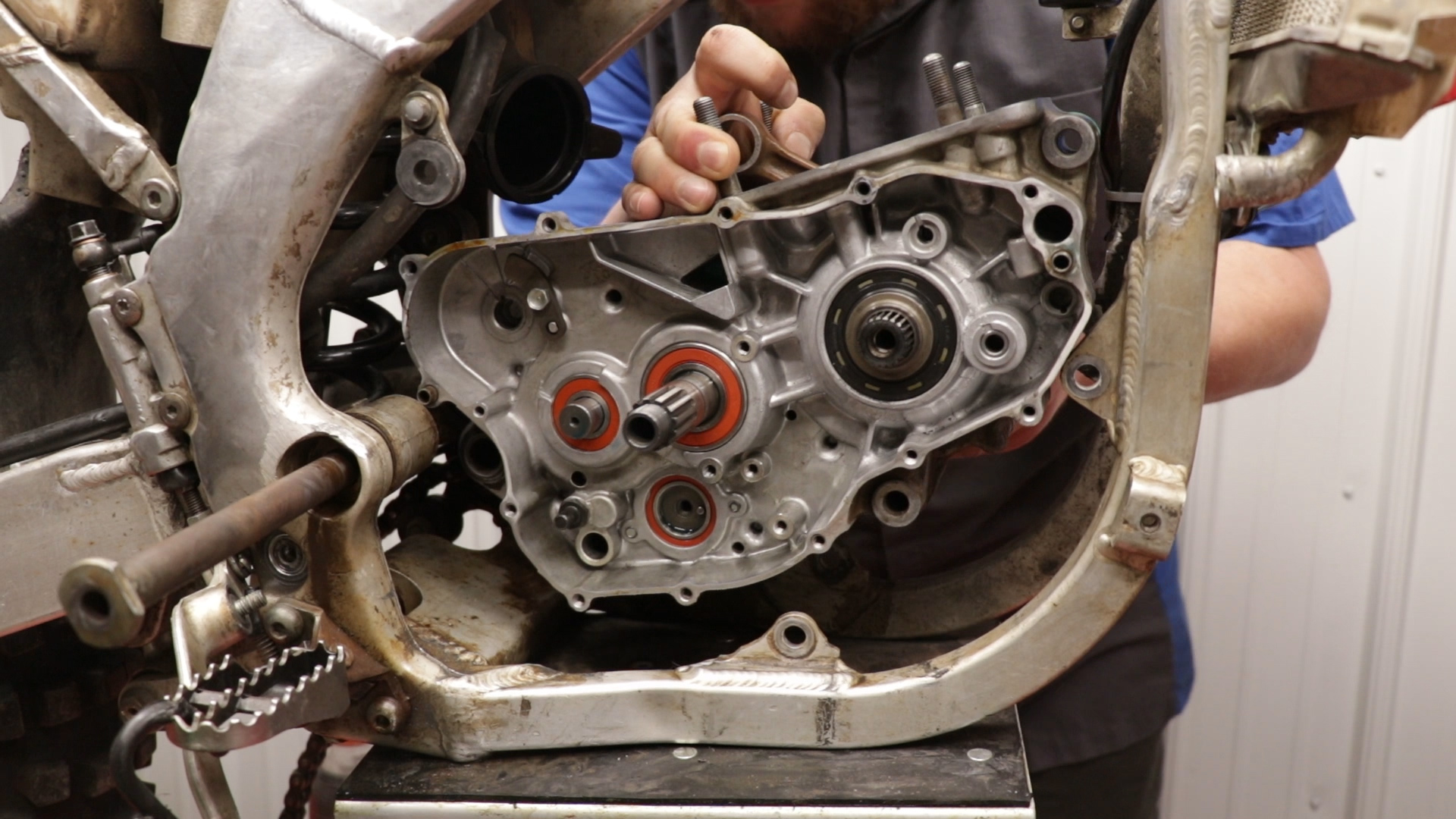

14 - Install Bottom End Into Frame
